Installation
It is recommended that the entrance panels are installed at a height of 160 – 165 cm (high level) from the floor. To allow the use of the entrance panels by disabled individuals, the recommended installation height is 120 - 125 cm (high level) – also refer to local the regulations in force.
The camera must not be installed in front of light sources or in positions where the subject being filmed is backlit.
STEP 1 – Remove the front cover of the entrance panel by turning the bottom screw clockwise. Secure the entrance panel to the wall with the fasteners supplied. Feed the connection cables on the front.
STEP 2 – Connect the BUS and electrical door lock cables to the appropriate terminals. Adjust the horizontal and vertical tilt of the camera (+/- 15° max.).

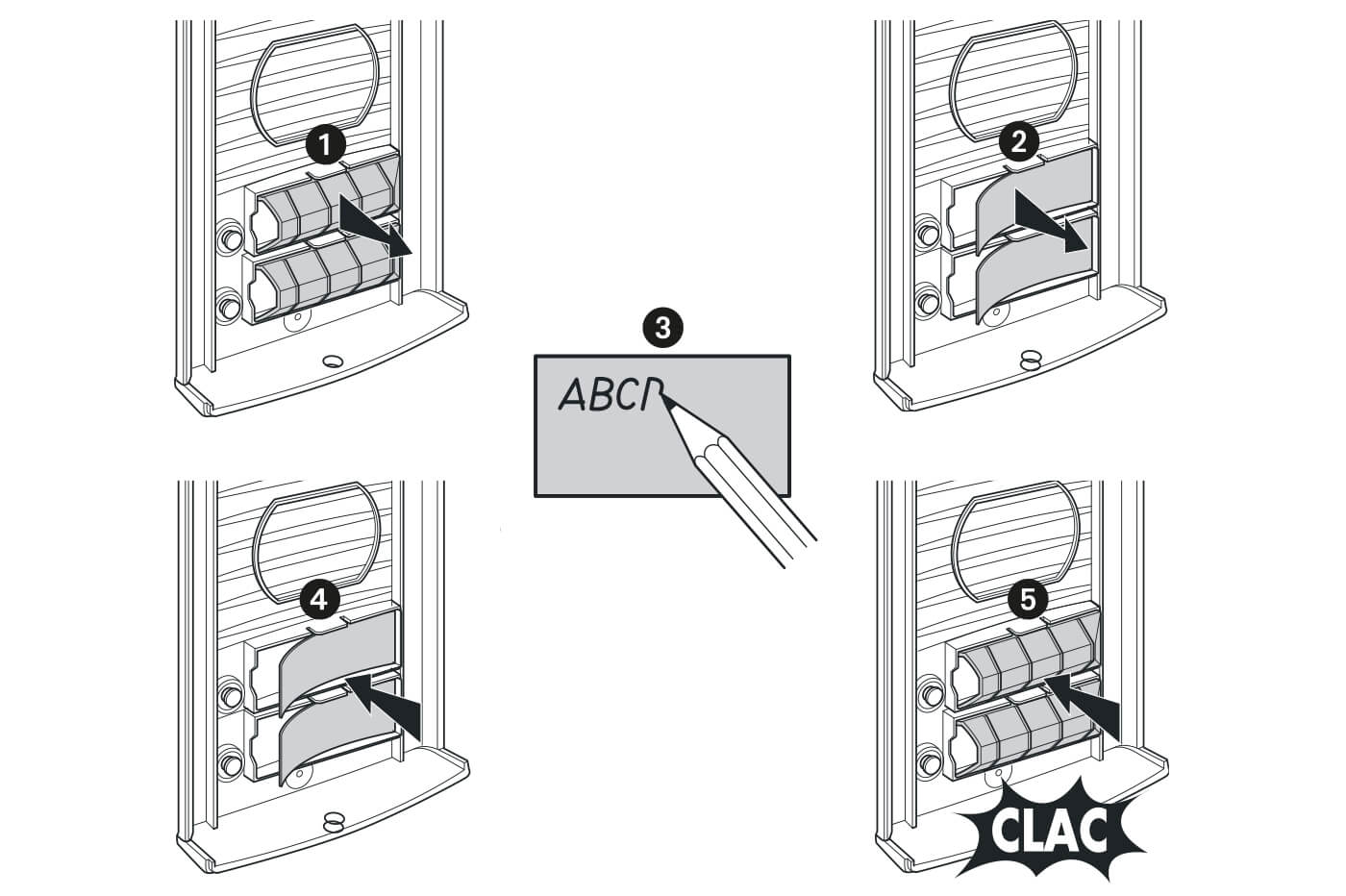

STEP 3 – Before reassembling the front cover, personalize the name tag(s) - labels under the appropriate plastic covers.
STEP 4 – Replace the front cover of the entrance panel by attaching it at the top and lowering it gently. Secure the front by turning the bottom screw counter-clockwise.
Front
Rear
Do you need to design a new video door entry system for a villa or apartment block?

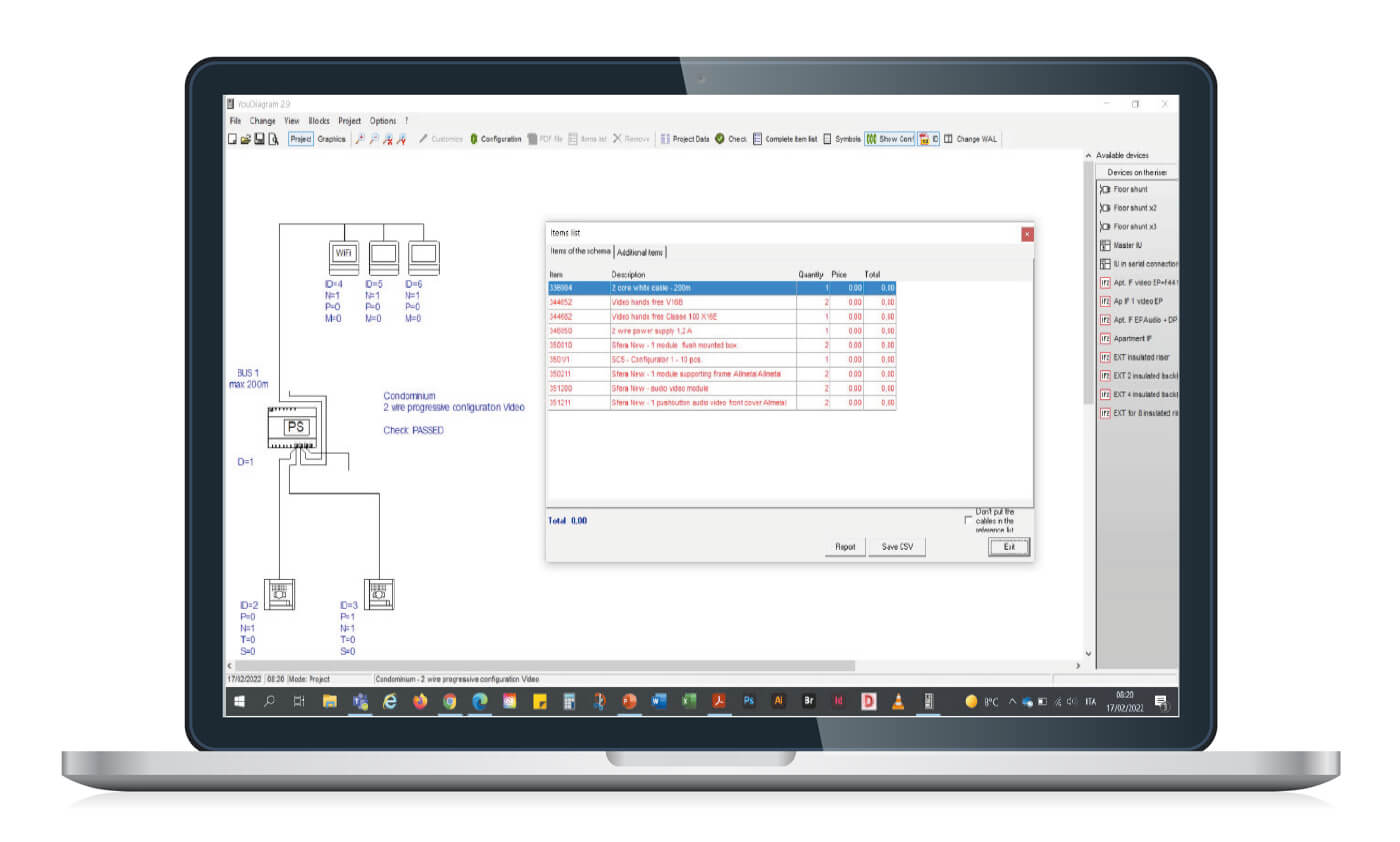

Use the video door entry system configurator.
