Installation
It is recommended that the entrance panels are installed at a height of 160 – 165 cm (high level) from the floor. To allow the use of the entrance panels by disabled individuals, the recommended installation height is 120 - 125 cm (high level) – also refer to local the regulations in force. The camera must not be installed in front of light sources or in positions where the subject being filmed is backlit.
STEP 1 – Remove the front cover of the entrance panel by turning the bottom screw clockwise.
STEP 2 – Secure the entrance panel to the wall with the fasteners supplied. Feed the connection cables on the front and connect them to the appropriate terminals.

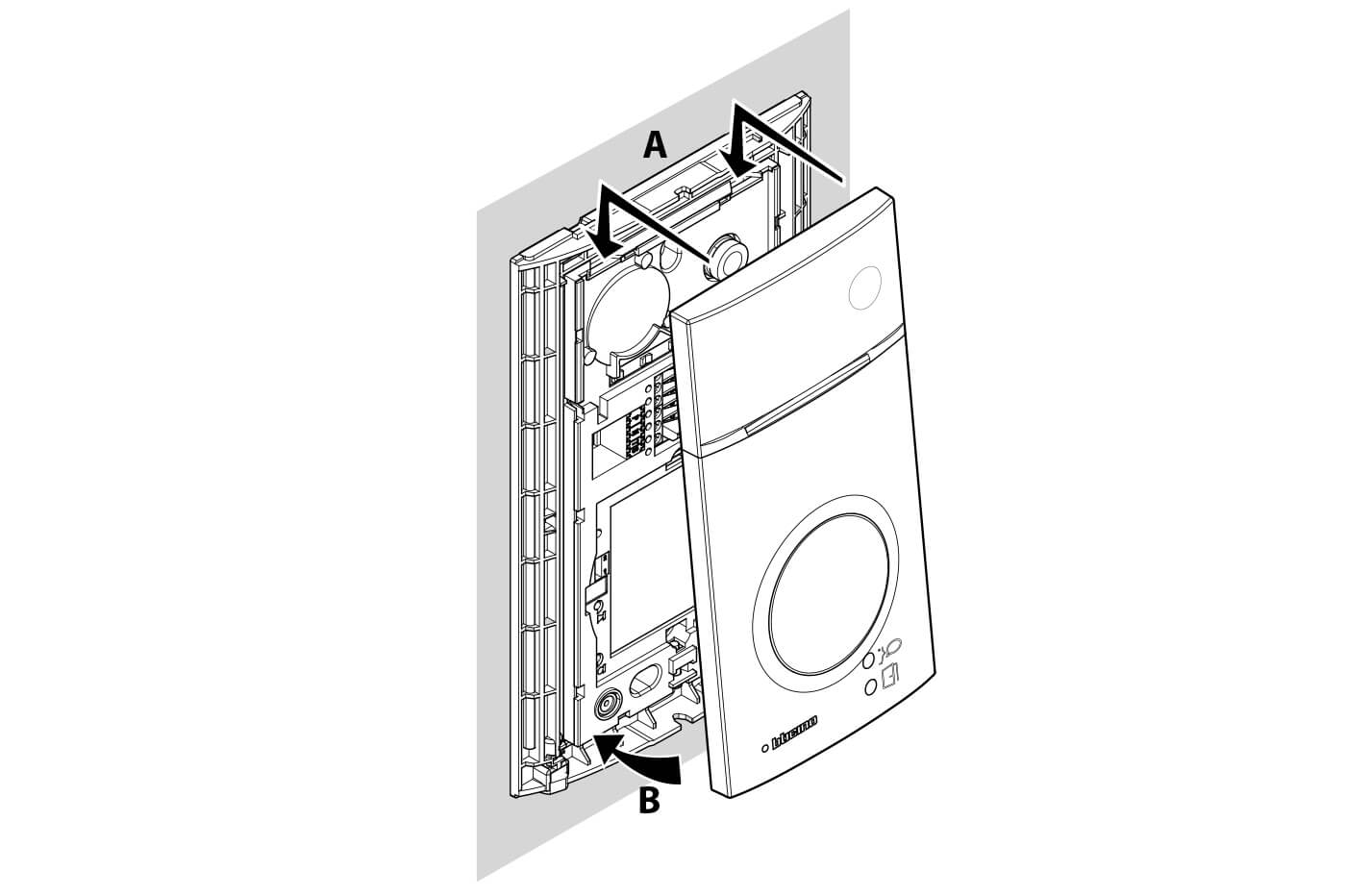

STEP 3 – Replace the front cover of the entrance panel by attaching it at the top and lowering it gently.
STEP 4 – Secure the front cover by turning the bottom screw counter-clockwise.
STEP 1 – Position the flush mounted box, item 352000, and attach the accessory plastic frame, item 343061 or 343063, to the box using the screws supplied.
STEP 2 – After removing the front cover, attach the entrance panel to the plastic frame using the screws supplied.
STEP 3 – Replace the front cover of the entrance panel by attaching it at the top and lowering it gently. Tighten the screw counter-clockwise to secure the front.
STEP 4 – Position the finishing frame of the accessory, item 343061 or 343063, on the frame and secure it by turning the two bottom screws counter-clockwise.
LINEA 3000 entrance panels (343071 - 343081 - 343091 - 343093). Dimensions in millimetres.
LINEA 3000 entrance panels (343071 - 343081 - 343091 - 343093). Dimensions in millimetres.
Flush mounted box 350020.
Compatible with Tersystem and Sfera entrance panels. Dimensions in millimetres.
Built-in accessory 343061 - 343063.
Dimensions in millimetres.
