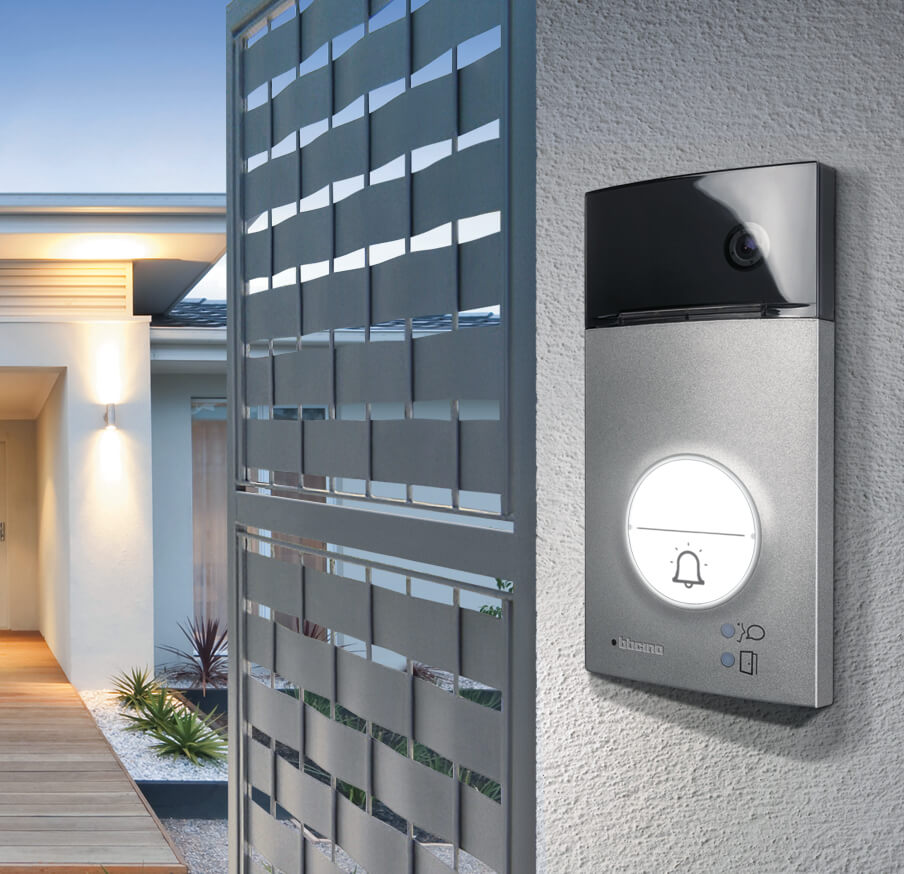

LINEA 3000: villa entrance panel
Specifically designed for villas and independent homes, LINEA 3000 is the refined and robust entrance panel. Refined with zamak (grey or black finish), this solution perfectly combines technological innovation and design.
LINEA 3000 entrance panels have a modern design enhanced by the robust zamak front cover. They have advanced functions such as the wide-angle camera and electrical lock release with RFID badge and clear disc. Thanks to their reduced width (100 mm), they can also be installed on the gate pole. A rainshield is also available as optional.
LINEA 3000: when you want a refined and robust solution for a single or two-family villa.
MAIN FEATURES
- 2 wires technology;
- Zamak front cover;
- Wall mounted installation;
- Flush mounted installation (with specific accessory);
- Rainshield (accessory);
- One call, second call preset;
- IP54 protection index;
- IK10 protection index against mechanical impact;
- Wide angle camera (105°);
- Door lock release with key card and clear disc;
- LED-illuminated name plate;
- Available in different kit solutions.
Wide angle camera
Wide horizontal and vertical field of view. Easy to use by children and disabled individuals.
Badge door opening
Electrical door lock release using a proximity reader and key card or clear disc.
For single and two-family audio systems
For single and two-family video systems. With wide angle colour camera
For single and two-family video systems. With wide angle colour camera, RFID proximity reader and set of coloured badges – Clear discs. Available in grey and black
LINEA 3000 is ready for wall mounted installation. For flush mounted installation, some accessories must be purchased separately: plastic box item 350020 and frame item 343061 (grey finish) or 343063 (black finish). Same two modules flush mounted box already used with Tersystem and Sfera entrance panels. The already existing flush mounted box may be used in refurbishments.
For wall mounted installation, a rainshield, item 343051 (grey finish) or 343053 (black finish), is available to purchase separately as optional.
|
343071 Audio |
343081 Video |
343091-343093 Video with RFID |
|
| Audio | Yes | - | - |
|
Colour video
|
- | Yes | Yes |
|
Wall mounted installation |
Yes | Yes | Yes |
|
Flush mounted installation |
With accessories 350020 + 343061 |
With accessories 350020 + 343061 |
With accessories 350020 + 343061 (Grey) – 343063 (Black) |
|
Rainshield |
With accessory 343051 |
With accessory 343051 |
With accessory 343051 (Grey) – 343053 (Black) |
|
Pushbutton call (max. 2 calls) |
Yes | Yes | Yes |
|
Wide angle camera (105°) |
- | Yes | Yes |
|
Door lock release with RFID badge |
- | - | Yes |
|
Protection index |
IP54 | IP54 | IP54 |
|
Impact resistance index |
IK10 | IK10 | IK10 |
