LINEA 5000 with Netatmo: DIGITAL. FUNCTIONAL. PERFORMING.
Linea 5000 with Netatmo is the new BTicino Smart Entrance Panel. It provides a complete building access experience, from installation to daily use and maintenance, perfectly adapting to the modern lifestyle and suitable for any installation situation.
LINEA 5000 with Netatmo (345000) is the new BTicino 2 Wires Smart entrance panel.
Ideal for the “digitalisation” of multi-family settings, it takes access to modern buildings to the next level. Featuring a large 7” touch screen display, a wide angle HQ camera, digital filters and a modern and intuitive graphic interface, it integrates perfectly with contemporary buildings, conveying a feeling of innovation and high quality.
With 2 wires technology and the possibility of customising the finish with the desired colour, logo and street number, it guarantees maximum adaptability in any living context.
LINEA 5000: DIGITAL. FUNCTIONAL. PERFORMING.
MAIN FEATURES
- BTicino 2 Wires SCS BUS technology;
- Wide angle HQ camera - 5 MP;
- Touch screen vertical display 7”;
- Built-in RFID keycard reader;
- IP65 protection index;
- IK08 protection index against mechanical impact;
- Flush mounted installation;
- Wall and surface mounted installation;
- Twilight sensor and night vision;
- Digital microphone with echo eliminator;
- Voice feedbacks;
- Theme change – display mode (light/dark);
- Local configuration via Bluetooth;
- Remote configuration via Ethernet / Wifi;
- Update of the residents’ address book using the app (H+P and H+S);
- Direct call to the guard station (if present);
- Compatible with the additional Inductive Loop module;
- Compatible with the additional keypad module.
LINEA 5000: a perfect combination of Italian style and innovation

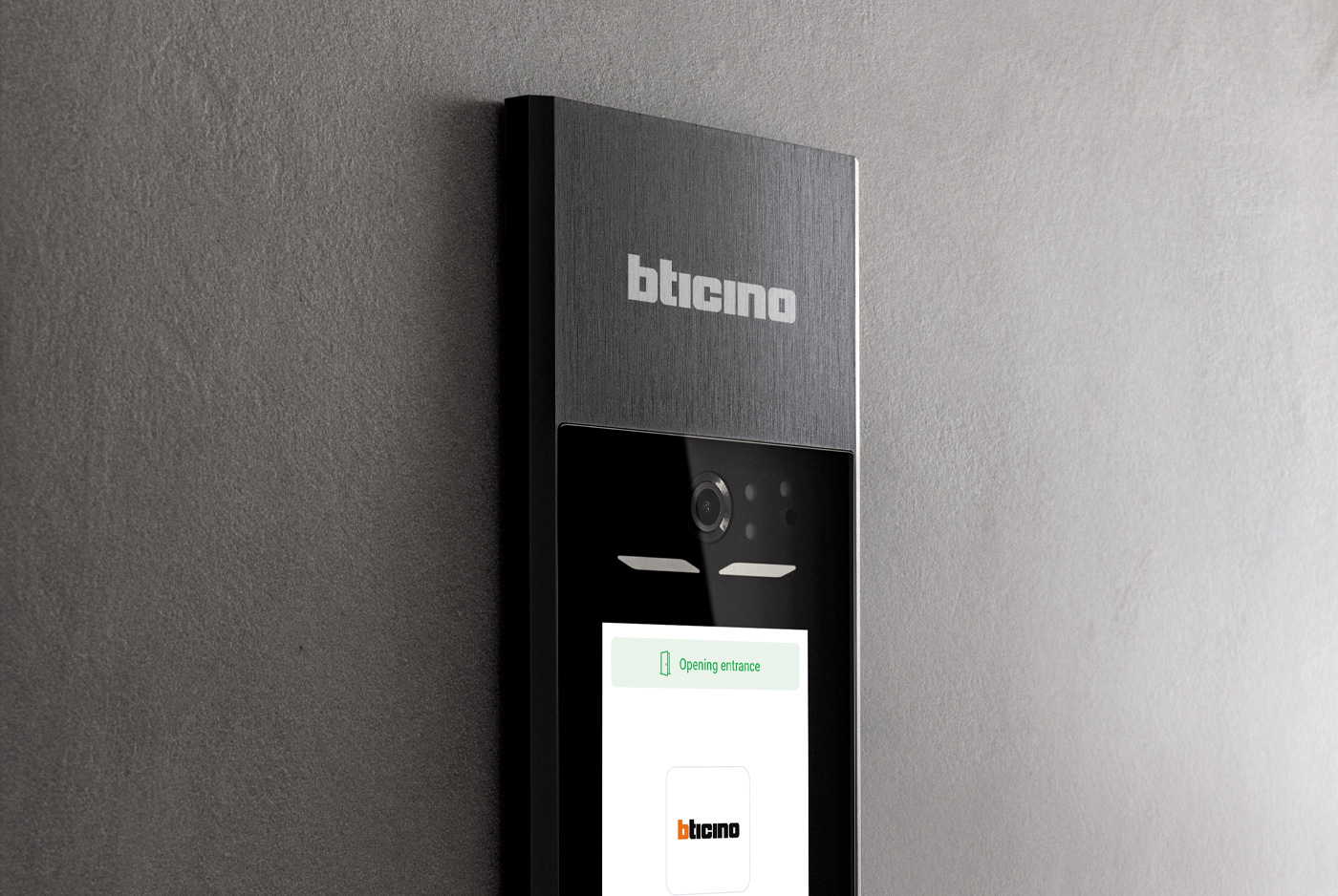

Inspired by modern architecture, Linea 5000 offers cutting-edge design, sophisticated details and innovative functions, enhancing the value of any entrance. The aluminium frame protects the display, while the bevelled edges give it a slim and yet sturdy appearance.
The technology, including the sensors, is hidden behind dark glass that activates automatically when approached.
Sophisticated details and durable materials exude style and high quality.

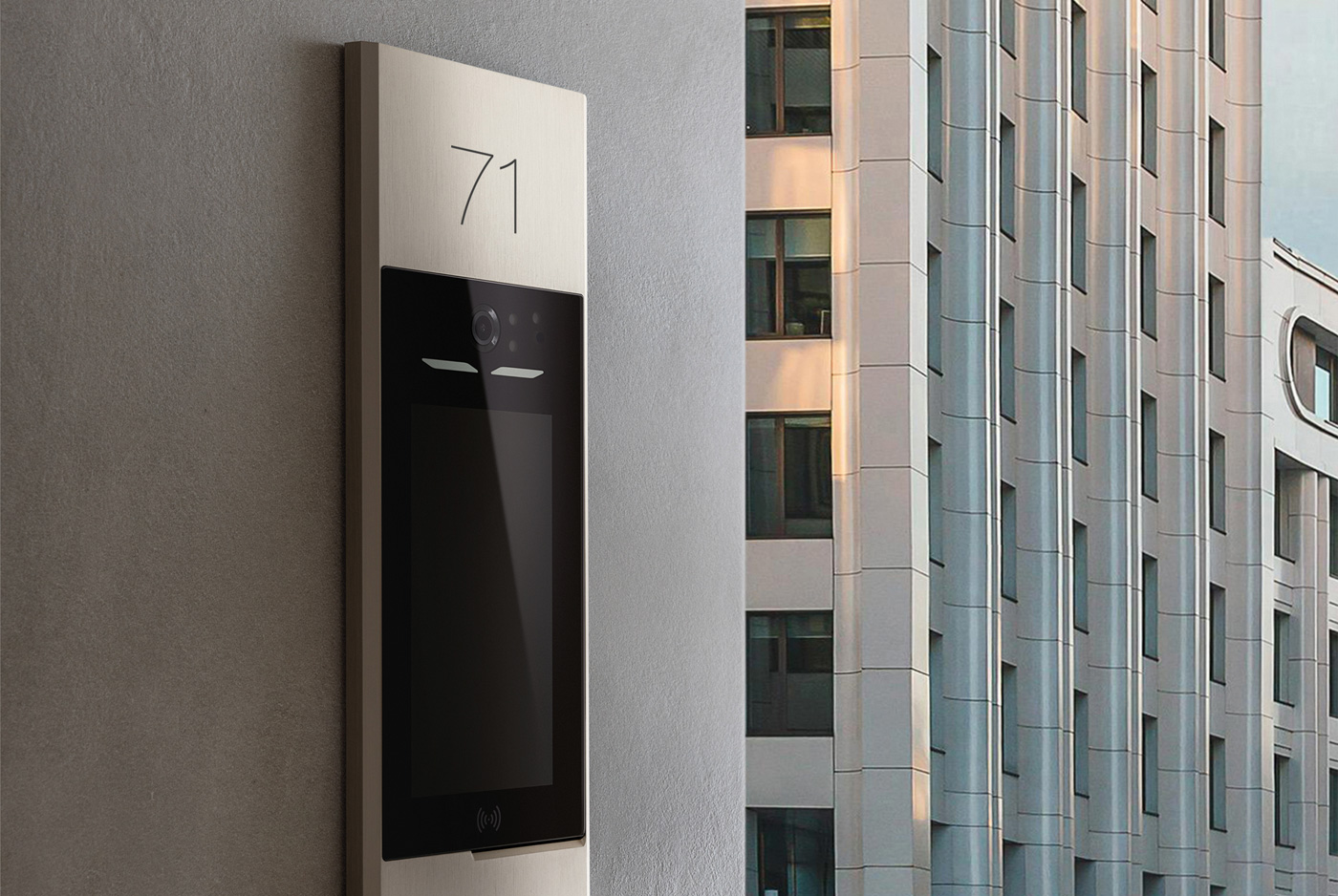

Five exclusive finishes to add value to every entrance.
With 5 exclusive finishes in 60% recycled aluminium, Linea 5000 can be easily adapted to all types of buildings, from contemporary of any size to classic architecture. Linea 5000 expresses robustness and high quality in every colour.
Two finishes in the catalogue
Three finishes on demand made to order or project
Ideal for upgrading existing 2 wires video door entry systems (e.g. systems with Sfera entrance panels or traditional brass pushbutton panels). Perfectly compatible with all the devices of the BTicino 2 wires video door entry system range: Classe 100 and Classe 300EOS video internal units, power supply units and system accessories.
Wide angle HQ camera
Resolution: 5 MP
Digital filters
Horizontal field of view: (119°)
Vertical field of view: (92°)
Video signal is transmitted to internal units via PAL encoding on 2-Wires BUS SCS technology.
Suitable for all home environments
With 2 wires technology and the possibility of customising the finish with the desired colour, logo and street number, it guarantees maximum adaptability in any living context.
LINEA 5000: total adaptability
The extensive customisation options, both physical and digital, bring unique freedom of expression.
Possibility of customised finishes, with frames in assorted, logo and street number for total adaptability.
All this makes Linea 5000 with Netatmo particularly suitable for meeting the customisation requests from architects, design studios, real estate developers and customers.
Physical customisation of the finishing frames. Using the specific online tool, it is possible to customise the finishing frames.
Frames for customisation must be ordered using the specific custom part numbers
(V/345101-02-03-04-05).

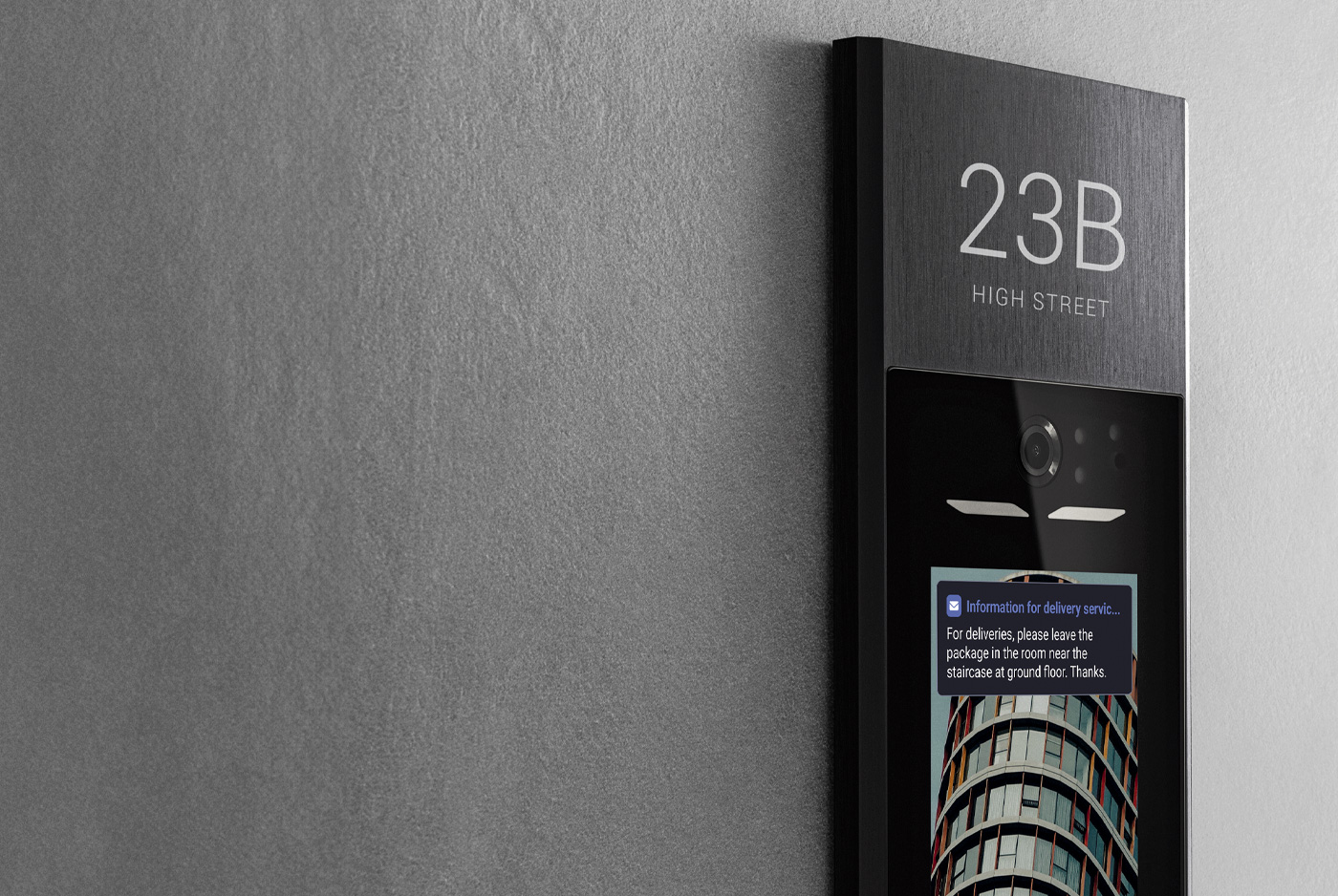

Digital customisation of the display. It is also possible to customise the display screens by changing the names of the residents in the address book, the display mode, adding a logo / address, as well as displaying messages for visitors/couriers, etc.
Do you need to choose the most suitable entrance panel and video internal unit for your system?
Define your system type and the characteristics of the building in just a few steps.
You will be able to choose products and functions that best suit your needs, starting from our KIT solutions.
Furthermore, you will always be updated on active promotions.
Smart configuration with HOME + PROJECT. A new experience. Completely digital.
Thanks to the Home + Project app, it will also be possible to remotely digitally configure, manage and update the entrance panel using a smartphone or PC, quickly and without the use of physical configurators.
Home + Project.
To digitally design, configure and customise the video door entry system. A new working tool for the installer. Available as a web app for Desktop PCs at https://homeproject.legrand.com and as a smart device mobile app for on-site configuration.
Remote address book editing. Modify system parameters, update the address book and download the new entrance panel configuration, either remotely or directly on site via Bluetooth connection.
With list of resident’s names.
In this mode, in addition to the code you can also choose to have the address book.
Entering the exact address of the apartment to call in the system.
Pre-set.
(maximum of 5 access codes, also with date/time schedule).
Pre-programmed / registered.
Keycards available in different colours.
With Home + Security App via Bluetooth connection.
(Can be installed in systems with at least 1 Linea 5000 display module 345000).
It allows the activation of an electrical door lock by means of a code. It is fitted with relay contacts (C – NO - NC) and clamps for the connection of a local door release pushbutton and can be programmed using the Home + Project app. To be completed with an appropriate frame, it can be used stand-alone or combined with a display module.
It allows the activation of an electrical door lock by means of a keycard or with Home + Security app via bluetooth. It is fitted with relay contacts (C – NO - NC) and clamps for the connection of a local door release pushbutton and can be programmed using the Home + Project app. To be completed with an appropriate finishing frame.
It allows people wearing hearing aids fitted with (T) selector to use audio door entry communication. It is connected to the display module using the multicable supplied. To be completed with the appropriate finishing frame.
