Installation

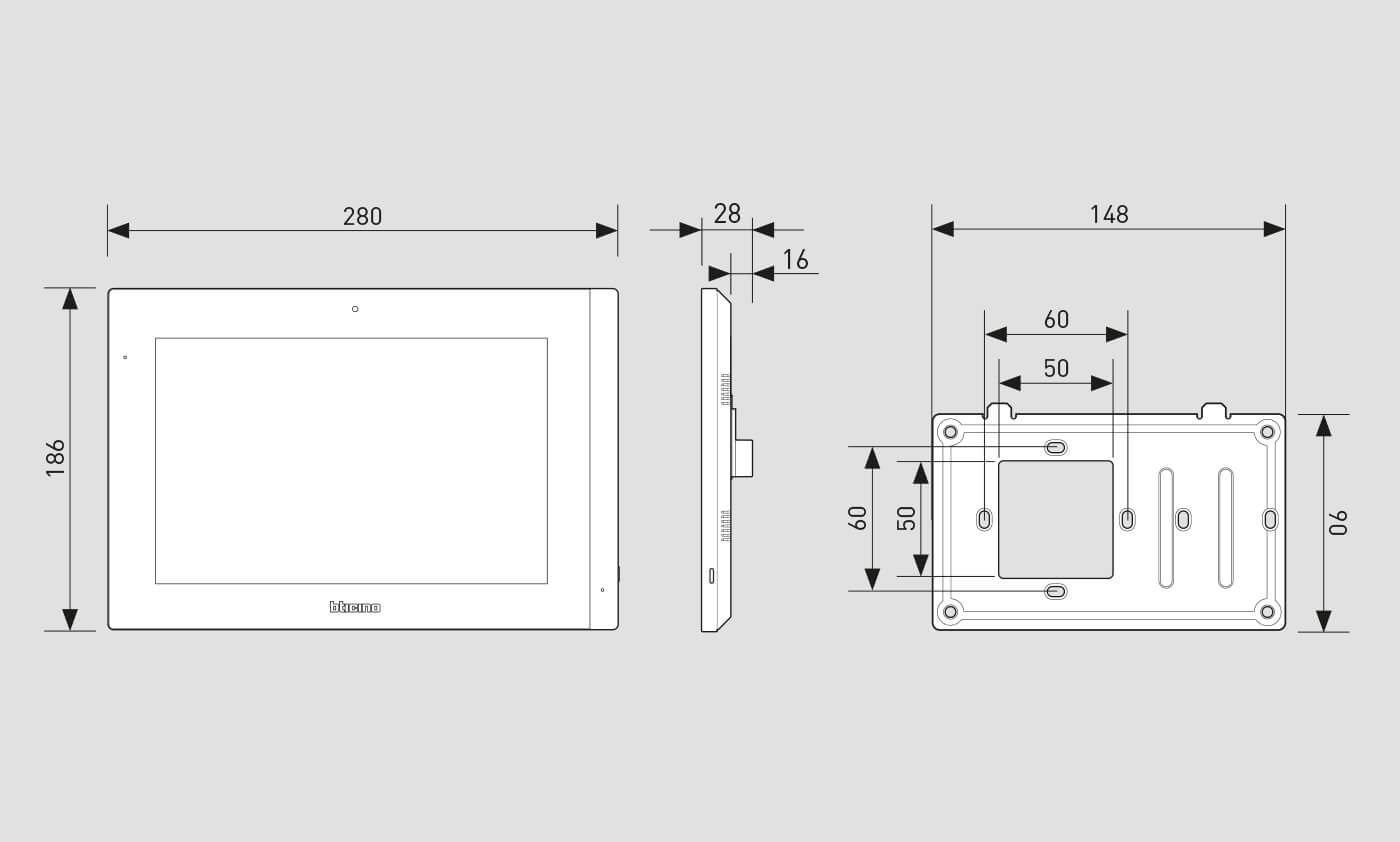

It is recommended that the entrance panels and video indoor units are installed at a height of 160 - 165 cm (high level) from the floor. For the use of the devices by disabled individuals, the recommended installation height is 90 - 130 cm (high wire) - unless otherwise specified by local regulations. The entrance panel camera must not be installed in front of light sources or in positions where the subject being filmed is backlit.
For the installation of DIN devices (e.g. PoE switches, lift control interface etc.), a special guard station with DIN rail must be provided.
(*) Recommended installation height, unless otherwise specified by local regulations.
IP system installation quick pdf guide. With the preliminary requirements and the procedure to create the system structure as well as configure the devices following the steps in progressive order.
Configuration with dedicated software
The dedicated system configuration software allows to create the system type, to set the parameters of all the devices and associate them to the system.
Furthermore, diagnostics, maintenance and updates can be performed through web pages, connecting a normal PC to the DES Server.
The barcode label (found on the device packaging) allows fast and error-proof association of the device to the system using a scanning tool / barcode reader.
Wiring diagram examples
Download some connection / wiring diagrams for typical installations with indications regarding the required cables.
