IP SYSTEM: for the best performance

The ideal solution for large multi-dwelling projects, capable of guaranteeing high performance, long distances and high video signal quality.

Catalogue

The IP Door Entry System solution is perfect for large residential complexes with a large number of apartments, as it is capable of guaranteeing the best performance, long distances and high video signal quality.
The IP video indoor units, the entrance panels and the guard station feature a modern design, with large touch displays and silver finishes. They have been awarded the prestigious Reddot recognition. The system is designed to be flexible and adaptable to different installations and building needs. The configuration is completed using dedicated software, to define the system type and configure and customise all the parameters.
The configuration is completed using dedicated software IP DES PRO, to define the system type, configure and customise all the parameters.

MAIN FEATURES

Multichannel: for simultaneous conversations (no busy lines);
High definition video quality: up to 1280 x 720;
Technology: IP Protocol;
Cables: FTP and UTP (CAT5 - CAT5E - CAT6) - Fibre optic;
Quick configuration with dedicated software;
Integrations: Smart Home, onvif IP cameras, lift control, alarm sensors;
Home + Security App: call answering and electrical door lock activation using a smartphone;
Home + Control App: Smart Home & Home Automation system integration (with Netatmo and MyHOME).

Discover the IP video door entry offer

Scopri la nuova offerta di videocitofonia IP

Interface with modern design & intuitive icons

Advanced features

3D facial recognition with Liveness sensor. Fingerprint reader. RFID badge and card reader.

10 and 7 inch touch screen

Indoor camera for intercom video calls with other apartments or with the guard station. SOS button and possibility of connecting up to 8 alarm sensors.
Specific versions with Smart Home management and MyHOME home automation integration.

Always aware with the Home + Security App

THE BEST APP FOR A SAFE HOME
Incoming call alert and notifications, motion and people detection, event information and lock management with a simple and intuitive interface.

Home + Security App

Your home under control with HOME + CONTROL App

EFFORTLESS COMFORT AND SMART SAVINGS
Control lights, shutters, energy usage, temperature and electrical vehicle. Create personalized scenarios for your comfort and efficiency.

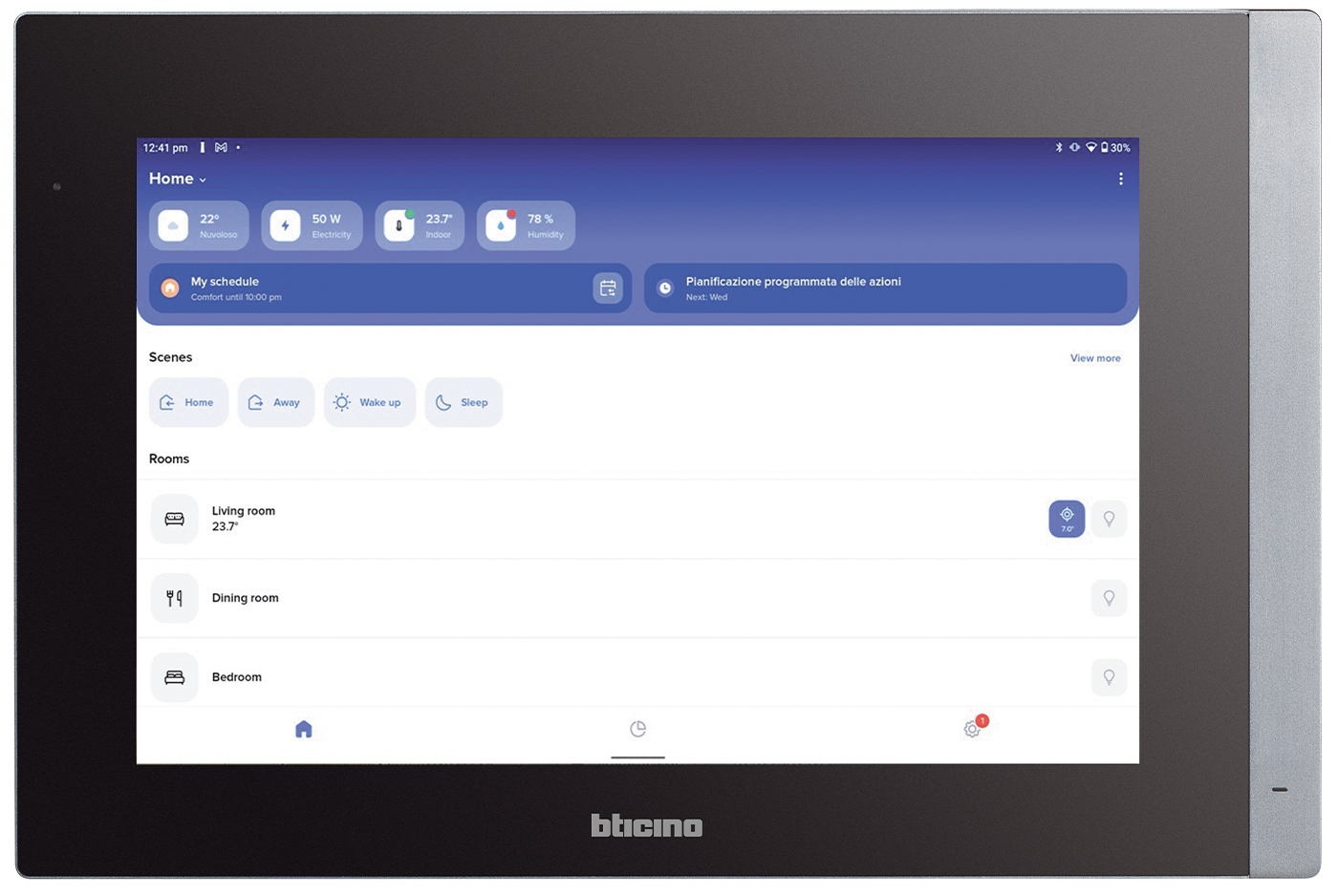

The same user interface as the H + C App is now also available directly on the screen of the 373103 and 373104 video indoor units.

Home + Security App

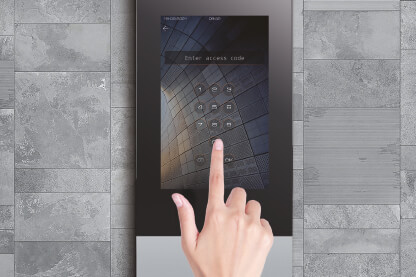

Touch screen entrance panels

Two versions with 10" touch display (374000 - 374002).

- Modern interaction thanks to the large touch display;
- Multiple calling modes; Information and advertising messages with customisable graphics;
- Flush mounted installation with dedicated boxes (to be purchased separately);
- Protection index: IP54;
- Protection index against mechanical impact: IK07.

Keypad entrance panels

Two versions with capacitive keyboard and 4.3” display (374001 - 374003).

- More traditional interaction thanks to the keyboard;
- Multiple calling modes;
- Flush mounted installation with dedicated boxes (to be purchased separately);
- Protection index: IP54;
- Protection index against mechanical impact: IK07.

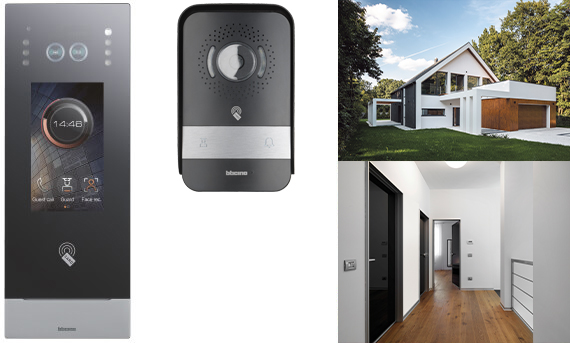

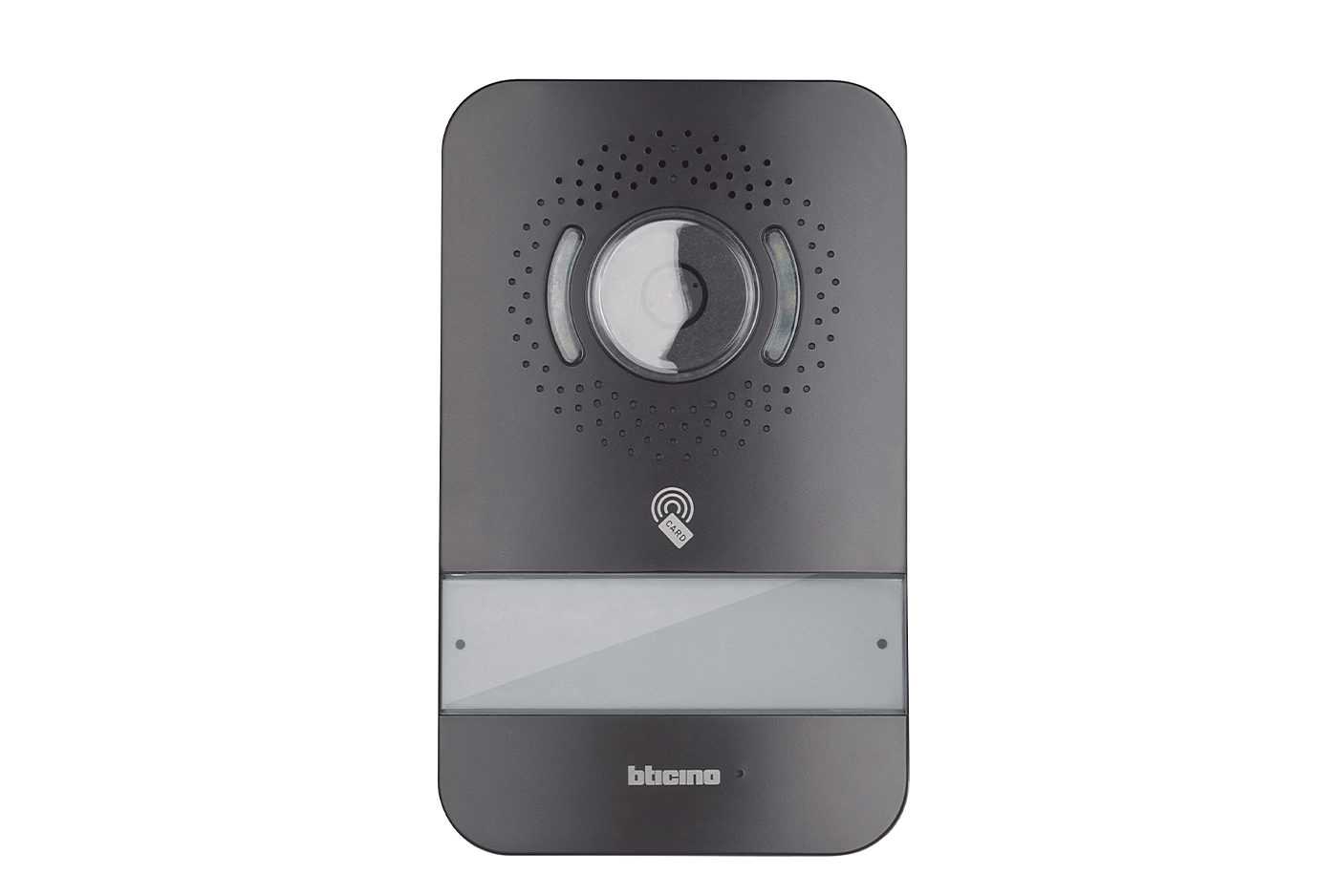

Small entrance panels

Four versions available - (374004) for indoor use only – (374005 – 374006 – 374007) for outdoor & indoor use.

- With 4.3" display, suitable as an outdoor panel for condominiums and single apartments;
- With direct call buttons, ideal for villas, single apartments, or common areas;

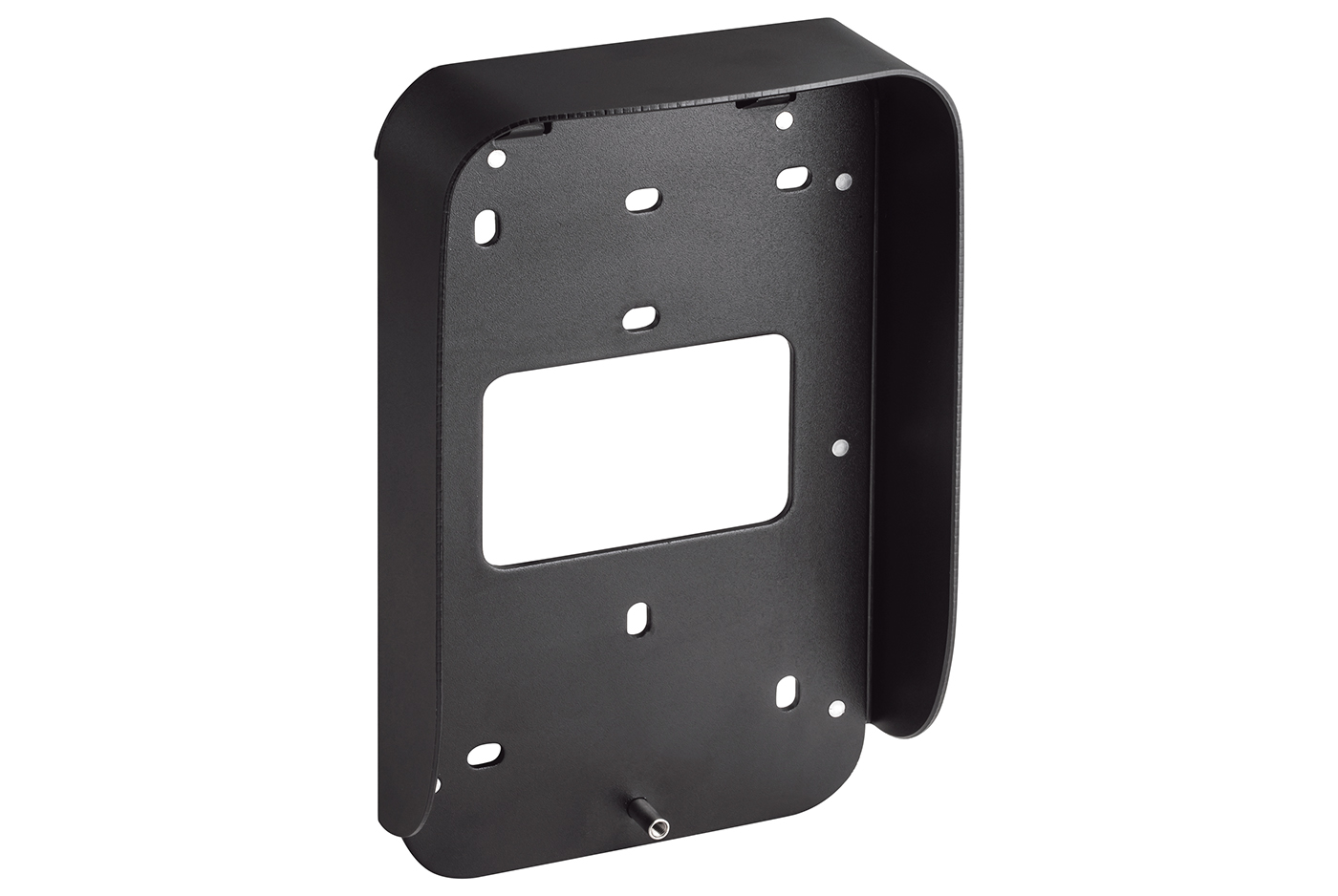

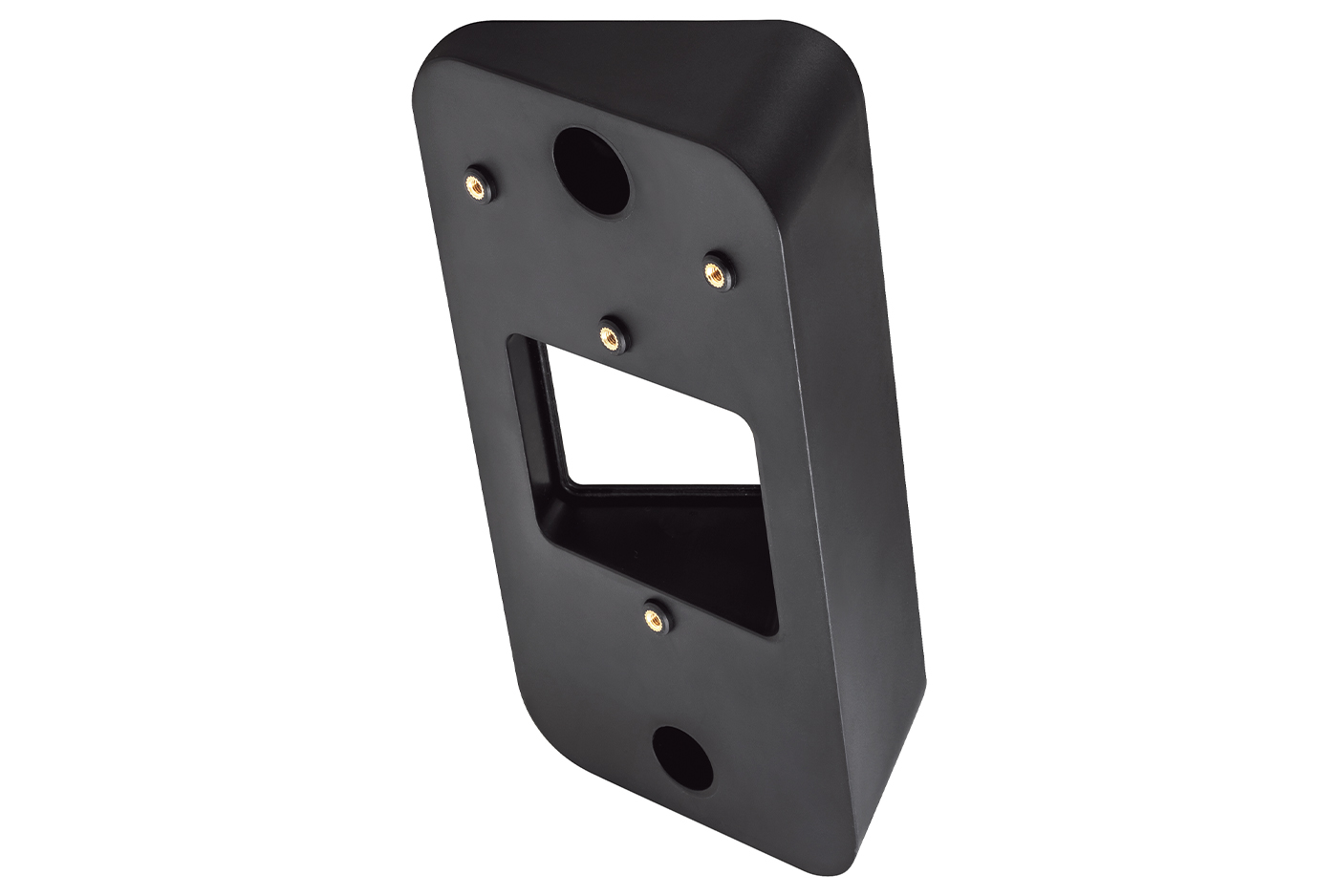

- Can also be installed with an optional corner bracket;
- Protection index: IP54;
- Protection index against mechanical impact: IK07.

Call the apartment any way you like

Standard call

Enter the address sequence of

AREA-BUILDING-RISER-FLOOR-APARTMENT.

Alphanumeric call

Create custom codes with numbers and letters.

Address book

With contact list (touch display only).

Access the building in several ways

FACE RECOGNITION

3D with dual cameras and Liveness sensor.

FINGERPRINT

Fingerprint reader at the entrance panels 374000 and 374001.

RFID CARD & BADGE

The RFID reader works with programmable cards and coloured badges 348200 …….. 348206.

ACCESS CODE

Electrical door lock activation with customisable access code.

SMARTPHONE

Using the Home + Security App, available for download from digital stores.

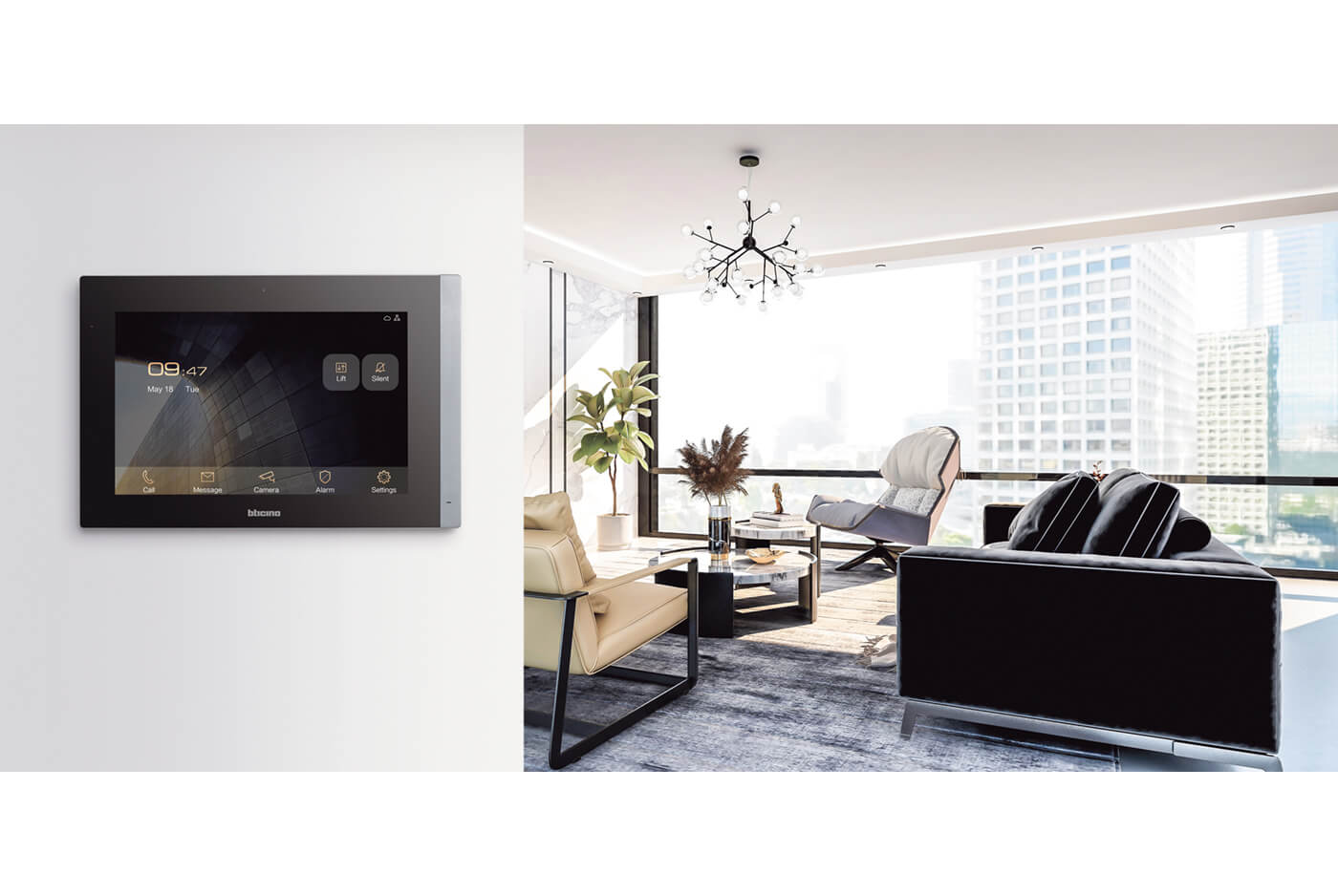

PREMIUM Touch screen video indoor units with 10 & 7 inch display

Two versions with indoor camera (373001 – 373002).
Two versions with integrated Smart Home and MyHOME home automation management (373103 – 373104).

- High-end and elegant design;
- User friendly interface with icons;
- Homepage with main functions, favorites, notifications and info;
- Security functions (SOS pushbutton and possibility to connect up to 8 alarm sensors);
- Flashing LED for notifications;
- Wall mounted installation;
- Indoor camera for video intercom between apartments and Guard Station (only for selected items);
- User interface as the H + C App directly available on the screen of the 373103 and 373104 video indoor units.

STANDARD Touch screen video indoor units with 7 inch display

Three different finishes (373005 – 373006 - 373007).

- Black, champagne gold and mirror finishes;
- The black version (373008) works with standard PoE + power supply
- Home page with main functions, favorites, notifications and information;
- Security functions (SOS button and possibility of connecting up to 8 alarm sensors);
- Flashing notification LED;
- Wall mounted installation;
- Home + Security app compatible.

Guard station

Desktop guard station (375000) with high resolution screen.
10" full touch LCD display with icon menu and audio handset. It manages incoming calls from the entrance panels, with the possibility of transferring calls to video indoor units or other guard stations (if present). On the touch display it is possible to view the history of calls and alarms, monitor alarm records and SOS calls from video indoor units, monitor the IP cameras installed in the common areas and the entrance panel cameras.
