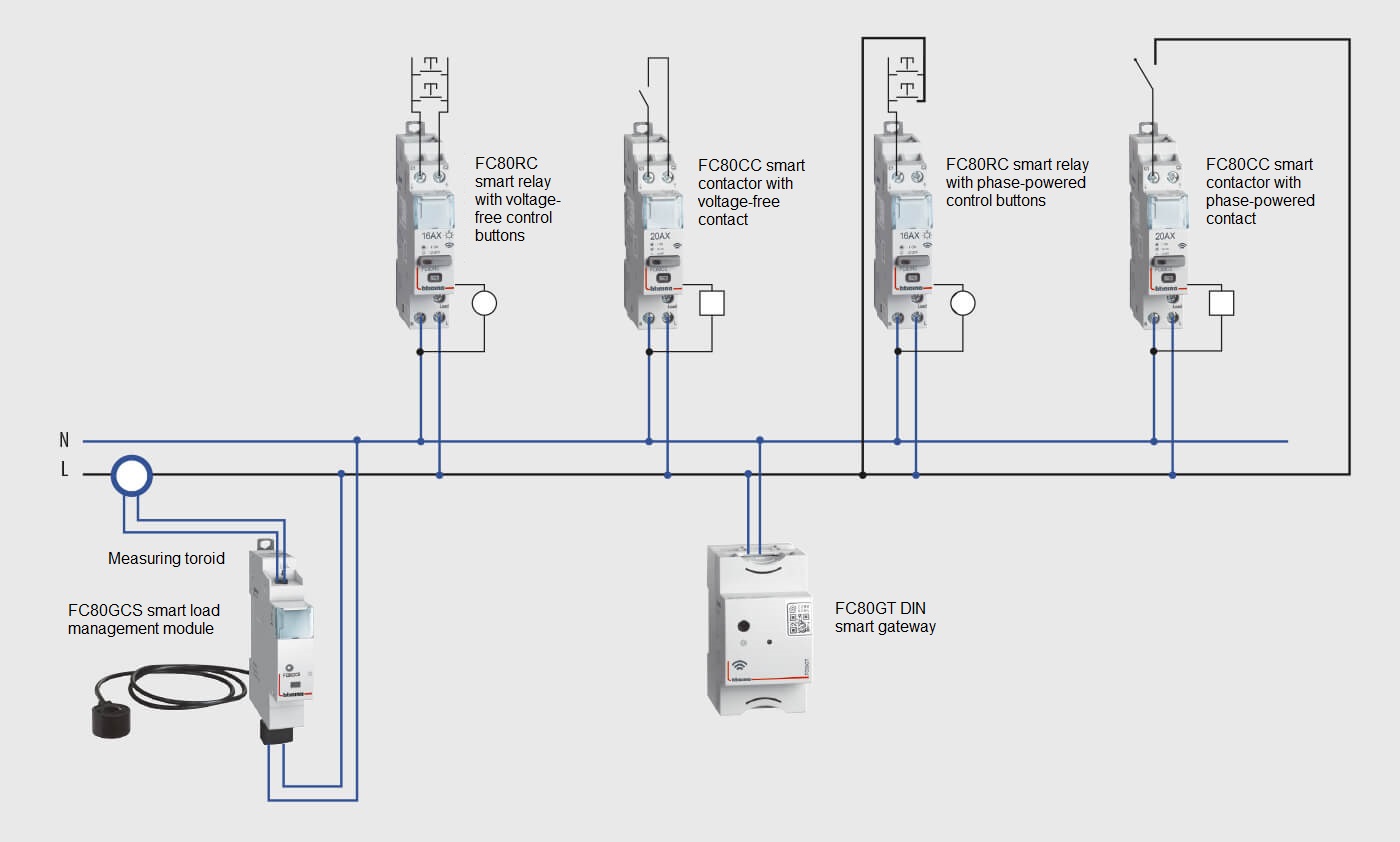

Connection example of connected DIN modules
Once the smart DIN devices have been installed and connected, it is possible to test and verify the correct operation of the system by controlling lights and loads using the local pushbuttons on the front of the respective DIN modules.
After ascertaining that local operation is correct, it is possible to proceed with the association to the system of all the connected devices following the procedure indicated in the instructions supplied with the Gateway (FC80GT).

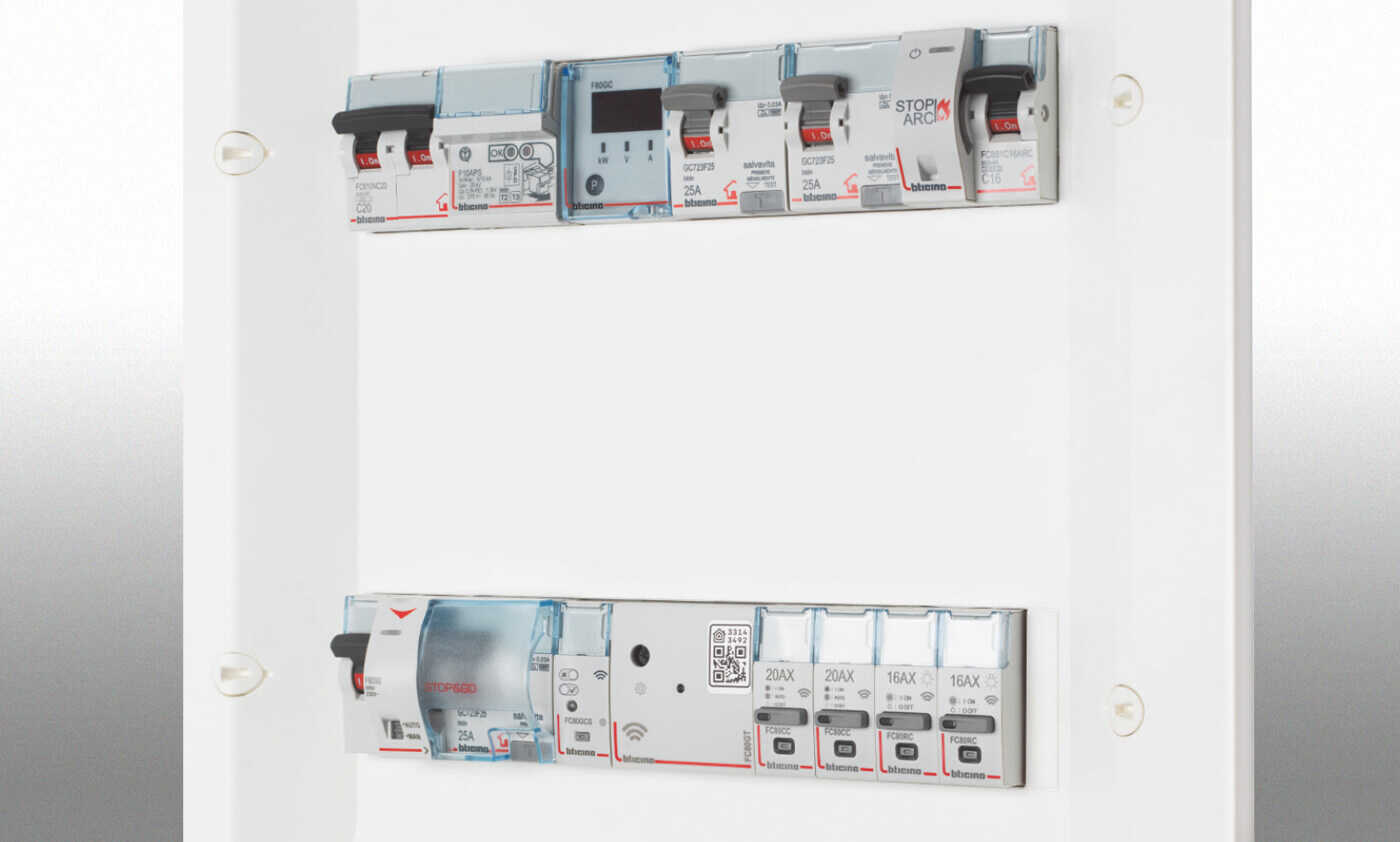

Smart modules can be installed inside any standard electrical panel to replace or complement existing unconnected modules.

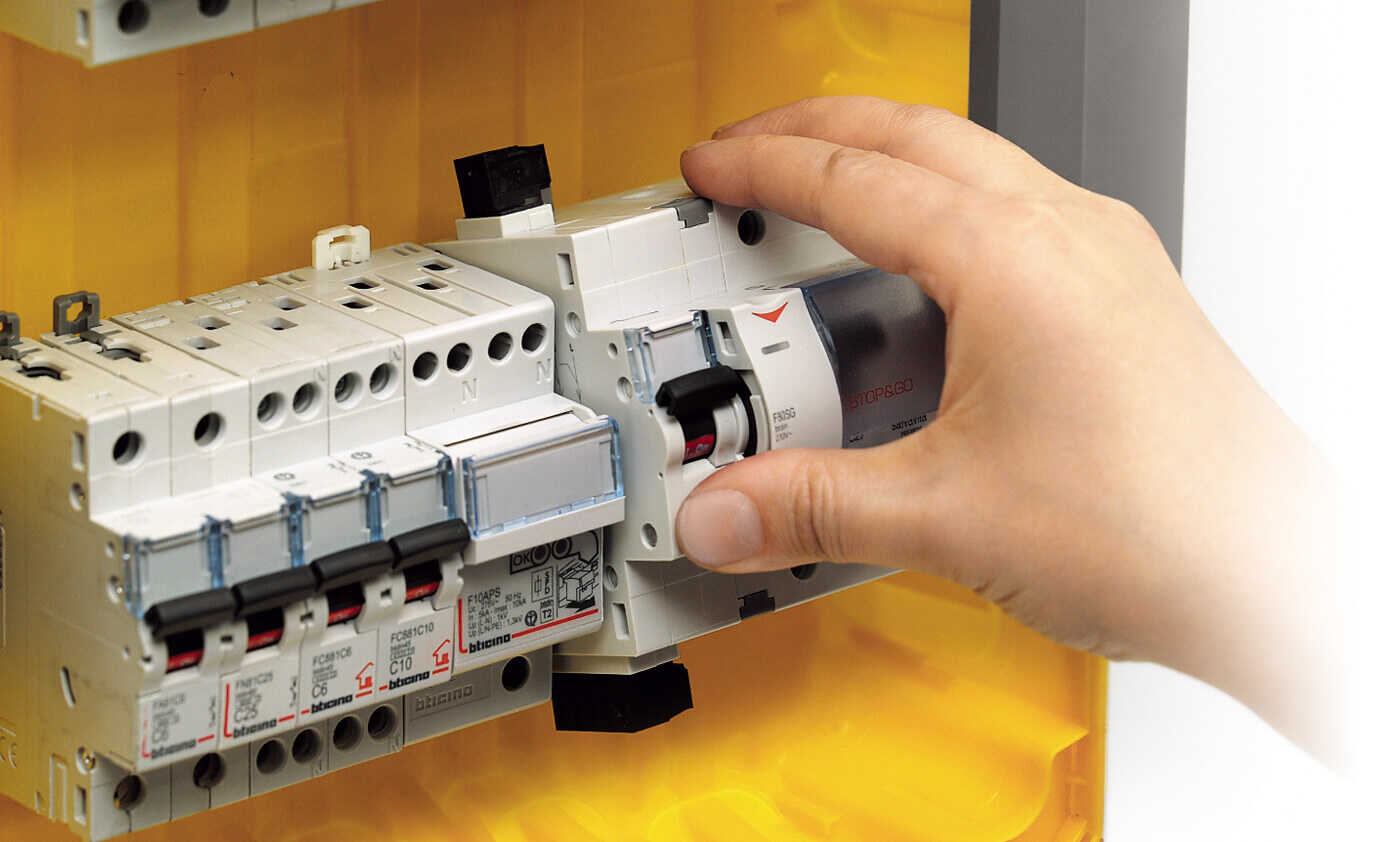

BTDIN devices are snap-fitted on DIN35 rails in switchboards, panels and distribution cabinets.
Do you want to get a quote for a Smart electrical system?
It's simple. Access the Smart Home Configurator from the Tools section of the site. With just a few clicks you can:
- create the home (two, three, four-room apartment, attic/villa and large attic/mansion)
- select the systems (motive power and services, lights, shutters, ...)
- customize the functions of each system for each room
- customize the civil series (Living Now, Livinglight, Axolute, ...)
- customize the material list and get a complete quote.
The quote will remain saved in your personal area and will always be at your disposal.
