NEMO and NEMO Easyconnect multifunction meters
NEMO multifunction meters for DIN35 rail or flush-mounted, precise, reliable complete
Reliability and precision in measurement
NEMO is the range of multifunction meters that allows you to monitor all the main electrical parameters of a plant. The range includes:
- Multifunction meters for flush-mounted installations NEMO 96 (96x96mm) and NEMO 72 (72x72mm)
- Multifunction meters for DIN rail installations (NEMO D4)
- Easyconnect multifunction meters for flush-mounted or DIN35 rail installations
The main features of the range are:
- Possibility of equipping with additional communication, measurement and input/output modules for NEMO 96 version
- Quality measurement solutions
- Simultaneously measures of all power line parameters such as: voltages, currents, frequency, power factor, active, reactive and apparent power
- Anomalies and interventions with activation of programmable alarm relays in the field
- Communication of measured parameters and configuration data
NEMO multifunction meters
NEMO is the family of multifunction meters able to measure the major electrical parameters and depending on the model increase versatility, accuracy and functions in your system. Through the different communication protocols it is possible to integrate the measures with proprietary supervision systems (Web server) or third-party.
NEMO Easyconnect multifunction meters
The range of NEMO multifunction meters is enriched with the new EASYCONNECT solutions, available in versions for DIN installation or flush-mounted. The main feature of these measuring units is the direct connection of the ROGOWSKI measuring coils, which guarantees a quick and safe error-proof connection. The measuring units are available in 2 versions:
BASIC:
Backlit display, RS485 Modbus or integrated Mbus communication, Class 1 (EN61557-12).
STANDARD:
Backlit graphic display, integrated RS485 Modbus or MBUS communication, 1 or 2 inputs of current sensors, Class 1 (EN61557-12).
NEMO Easyconnect multifunction meters, fast, secure and error-proof connections

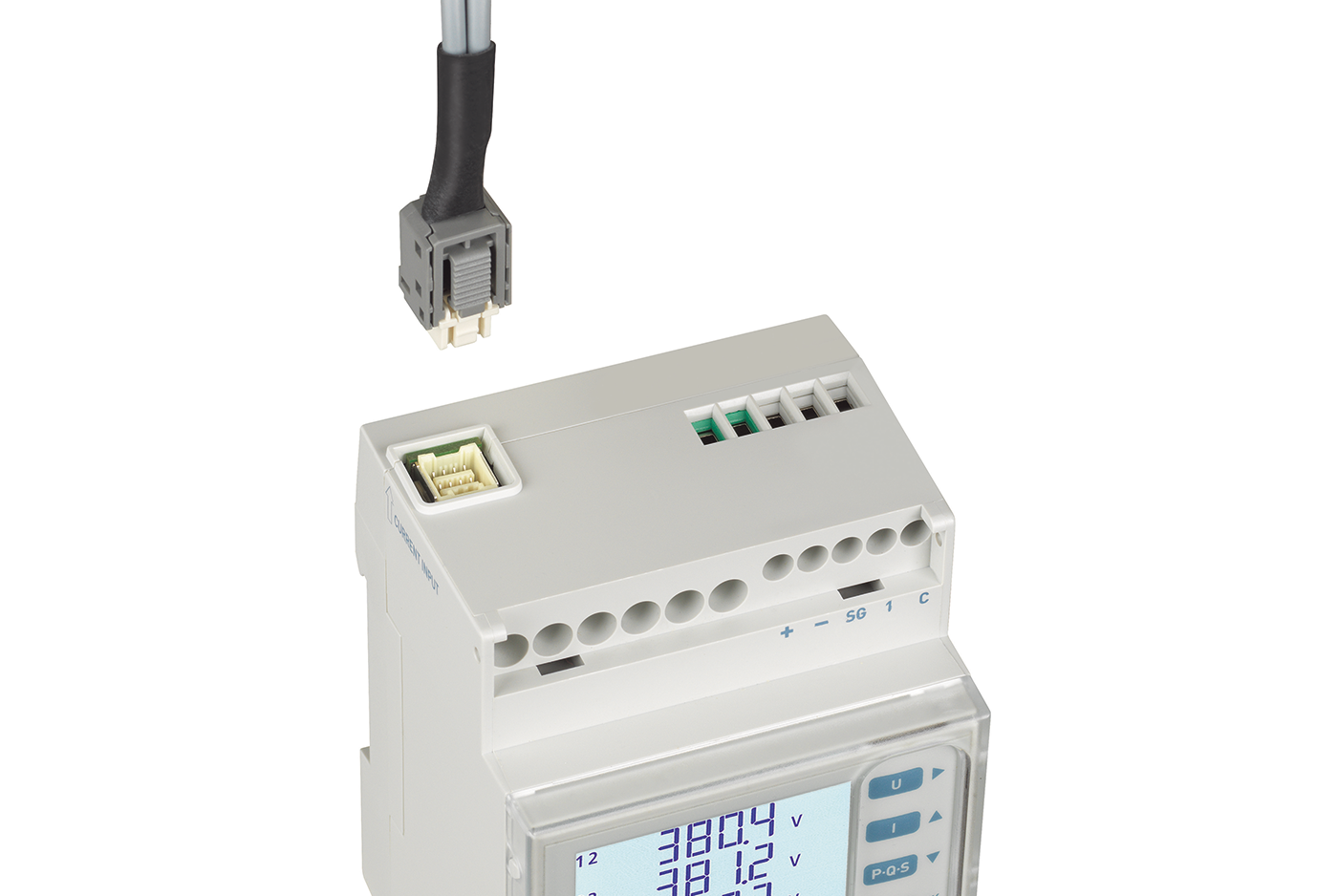

To ensure maximum flexibility and speed of installation, NEMO Easyconnect meters are equipped with closed Rogowsky coils that can be easily connected by means of a connector capable of reading currents up to 125A. The connection between current sensors and measuring units guarantees a quick connection, which reduces installation times and consequently avoids connection errors.
NEMO 96 EA network analyzer
It allows you to control the quality of the network it measures and to record the events that may occur.
It helps to manage and ensure the reliability and energy efficiency of the installation, in order to minimize losses due to disturbances in distribution networks.
The NEMO 96-EA is provided with the RS485 Modbus RTU/TCP communication module.
NEMO 96-EA is equipped with an internal memory of 8Mb for recording real time data (current, voltage, power, frequency,...) and integrated data (energy).
It is also able to save energy quality events (voltage holes, overvoltages, interruptions and rapid voltage changes).
Calculate the intensity of the instant flicker.
The connection of NEMO 96-EA is via TA for single-phase and three-phase 3-wire or 4-wire networks.
These devices, respectively in the DIN 35 rail and 96x96mm flush-mounted versions, are characterized by basic measuring functions and can be used in applications where no special measurement requirements are required. They are equipped for pulse output and with the integrated RS485 MODBUS communication function.
The NEMO 96 built-in multifunction measuring units can be equipped with various additional modules, which can be installed on the back of the devices for the integration and communication of different standards and protocols.
