NEMO SX Supervision and measurement system
System for energy management and plant supervision
Universal and innovative management and supervision system
NEMO SX is an autonomous and integrable system which, thanks to the type of automatic connection, simplifies the assembly phases and does not require modifications to the existing switchboards.

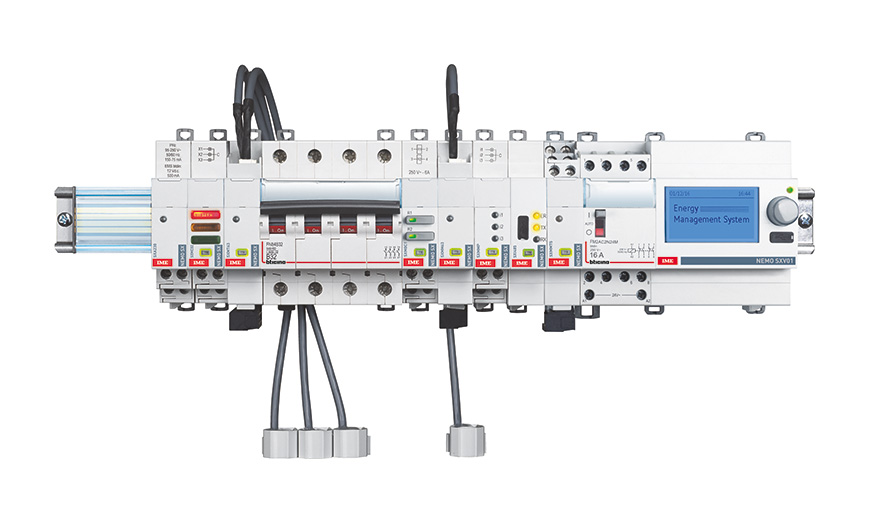

Its mechanical characteristics allow it to be used with a wide range of protection devices and in all switchboards and distribution cabinets directly on DIN35 profiles.
Supervision of the system is permitted using any PC, tablet or smartphone device, using the specially installed software or the Internet browser.
The NEMO SX system allows you to:
- Verify that the installation works correctly
- Control your system directly
- Supervise the system remotely
NEMO SX Measuring system for multi-circuit installations
Energy efficiency means reducing operating costs in a system. Today this is mandatory in several applications. The NEMO SX IME energy management system enables the efficient management and use of energy within a building. It allows full control of all activities in order to improve their functioning by anticipating any failures.
The NEMO SX supervision system, with an extremely compact design, is able to offer all the functions to allow complete supervision of the system:

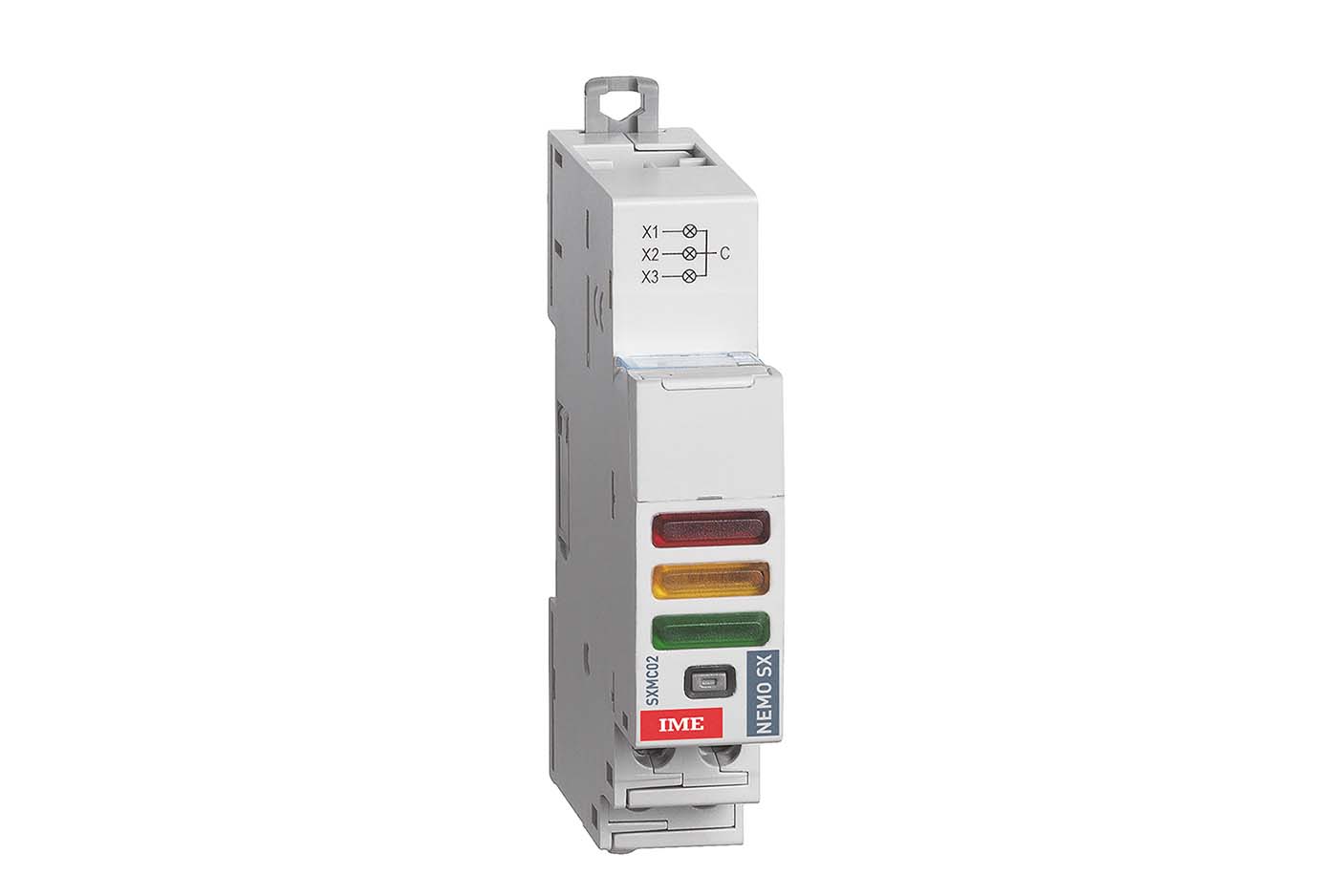

- measurement status (ON / OFF / fault)

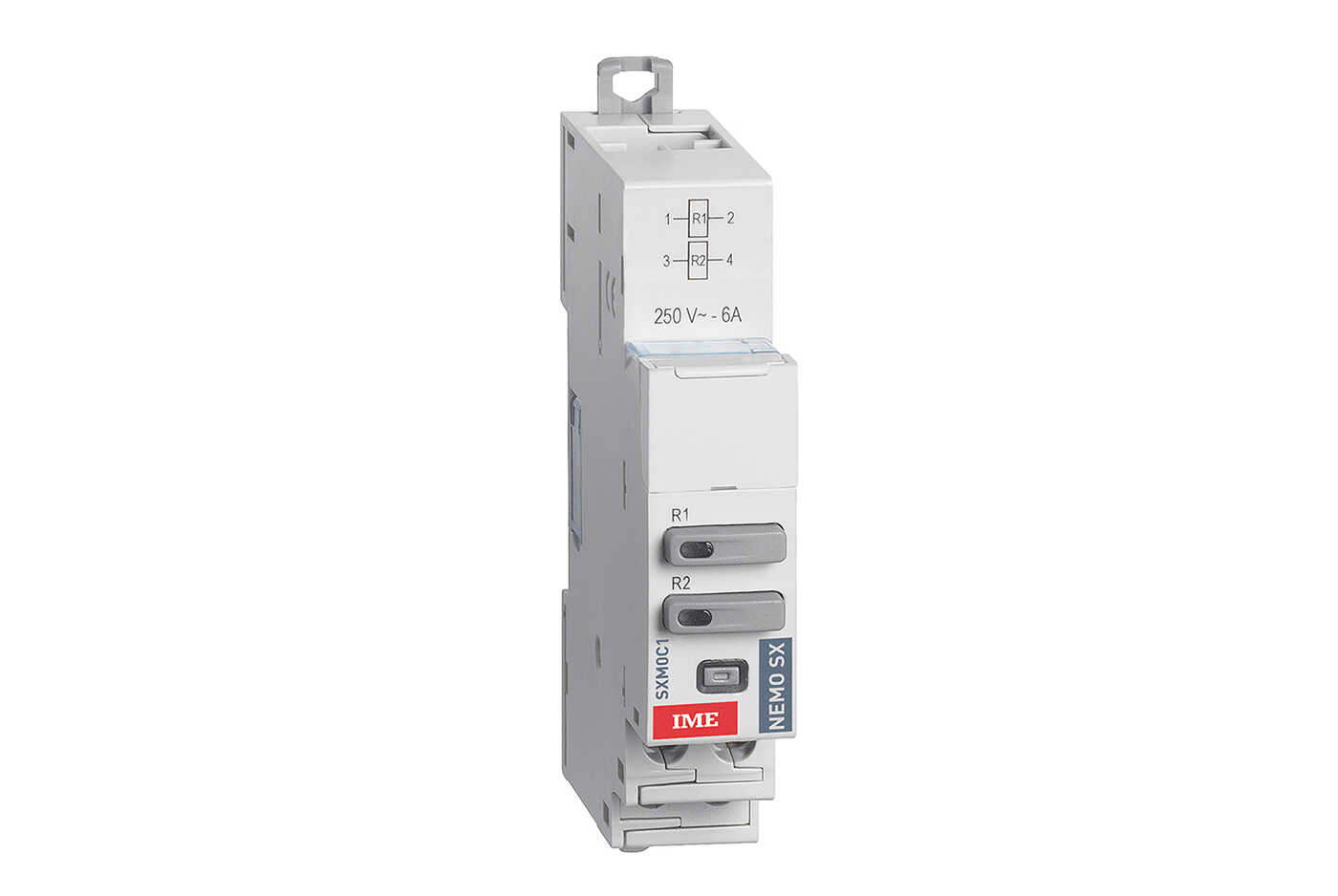

- control - pulse count

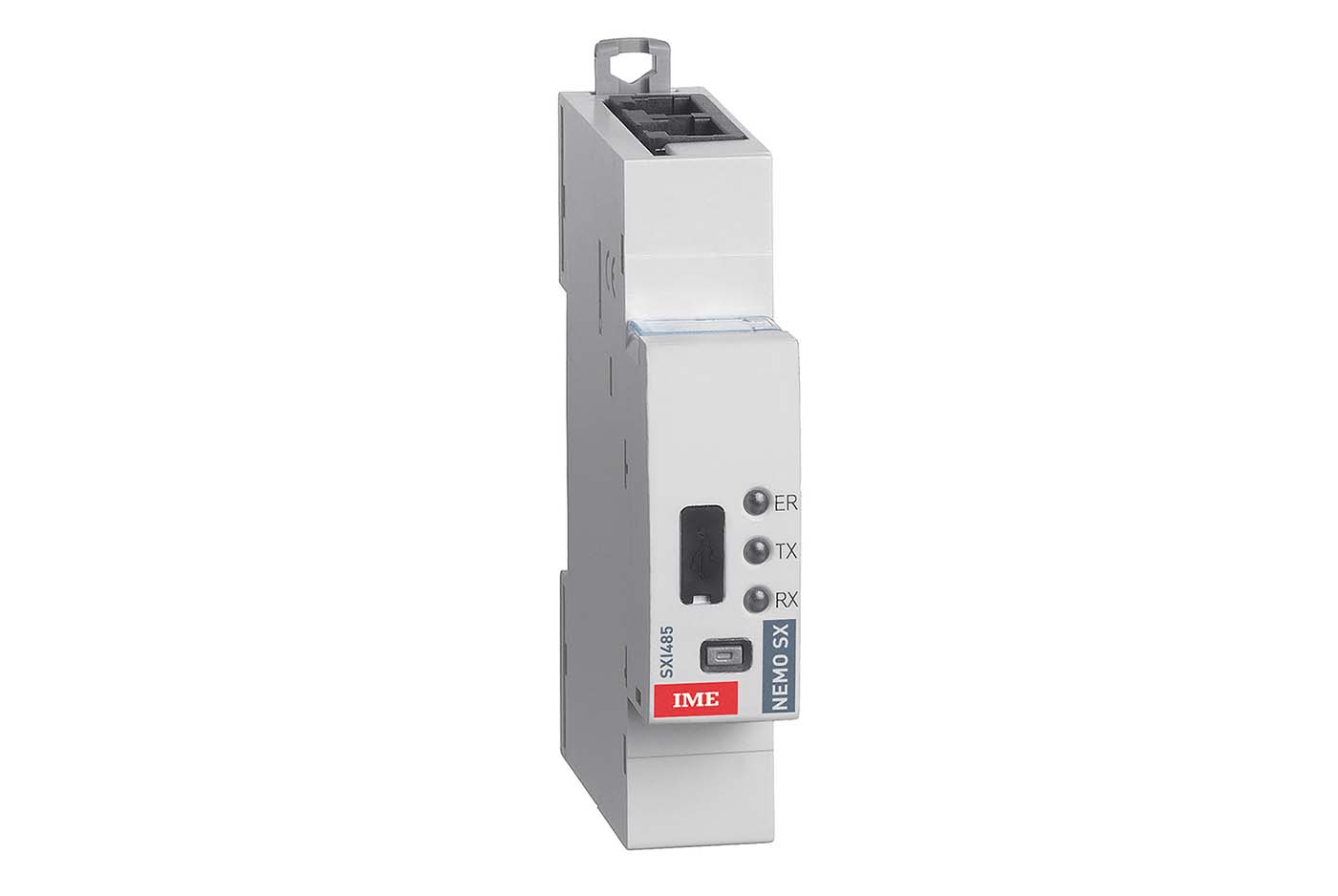

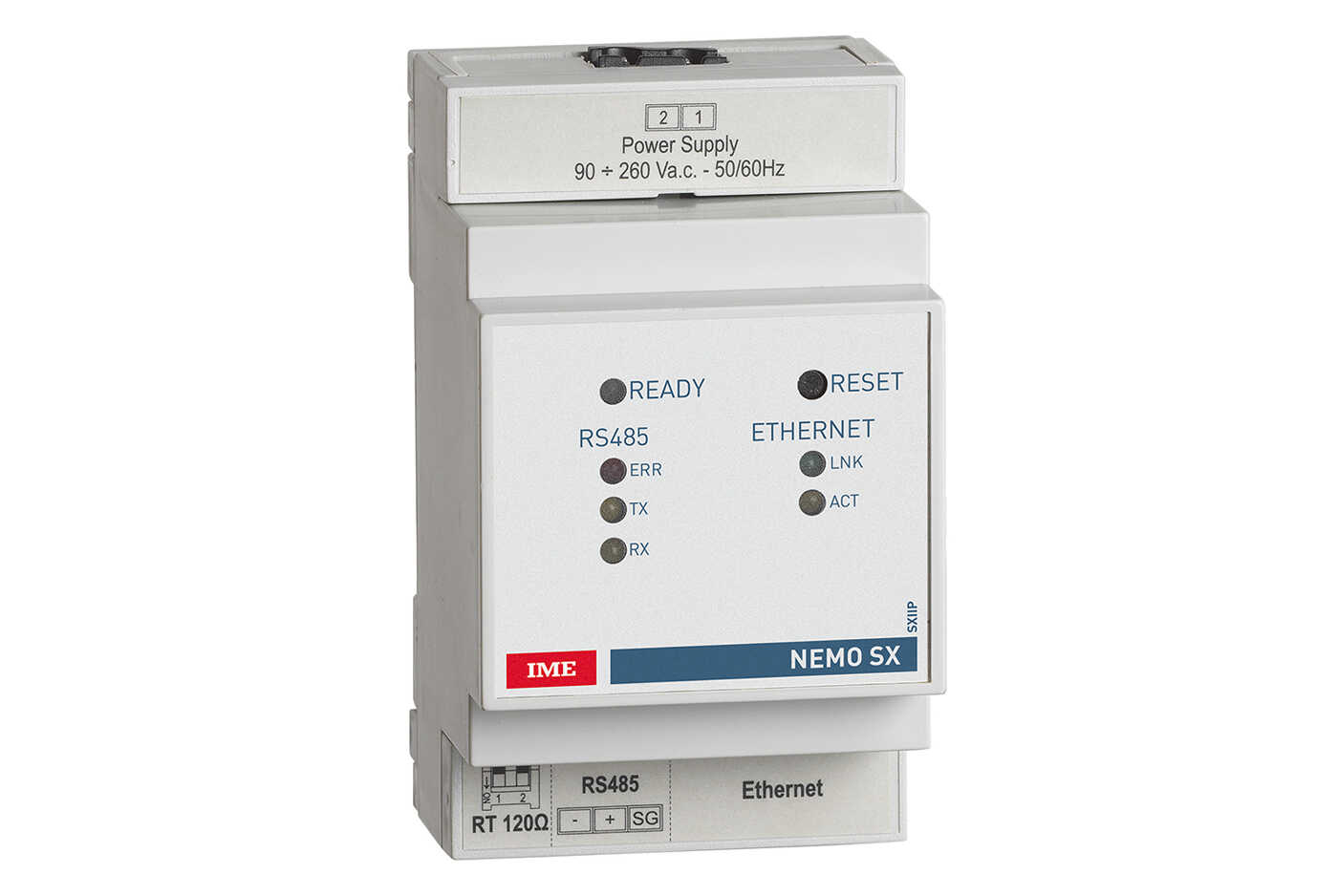

- serial communication
- visualization
- accuracy class 1
Suitable for all protective devices NEMO SX modules are compatible with any type of protection device (modular or power), whatever the brand.
Can be installed in new and existing switchboards.

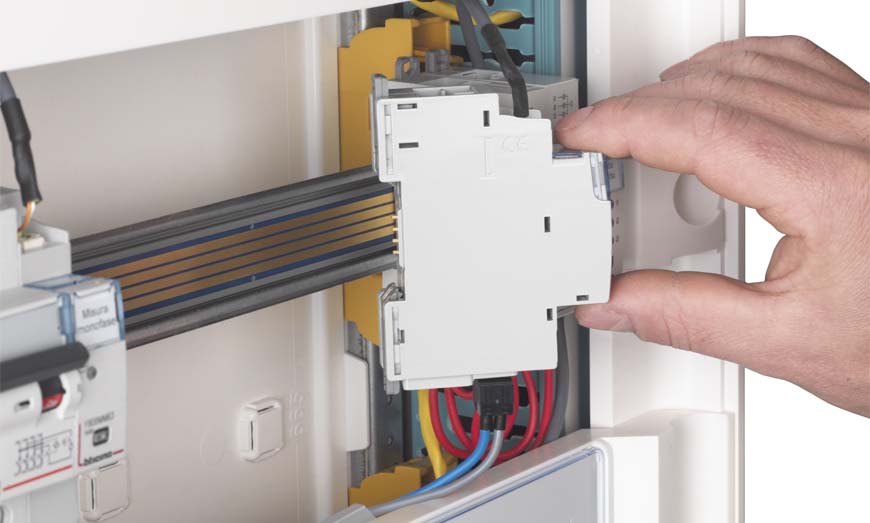

The compact dimensions and the possibility of connecting the system via 2 different solutions make it easy to install in new or existing switchboards.
The NEMO SX system allows to perform the following functions:

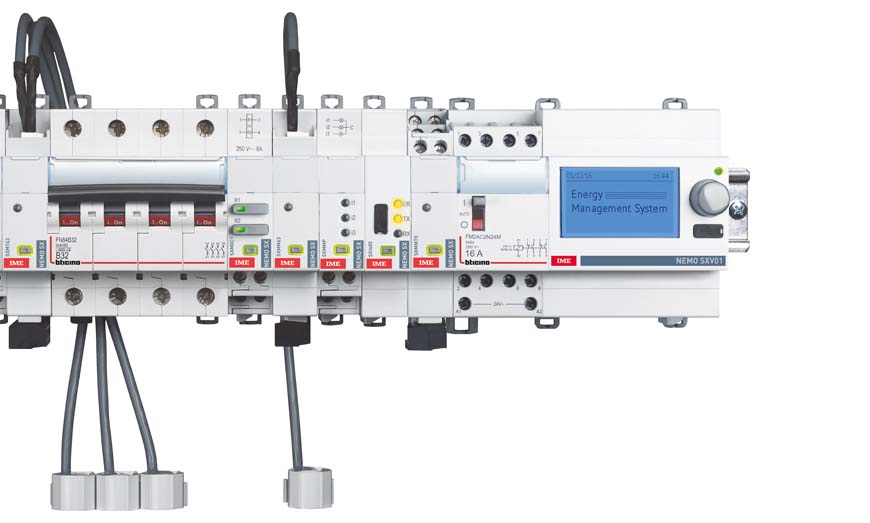

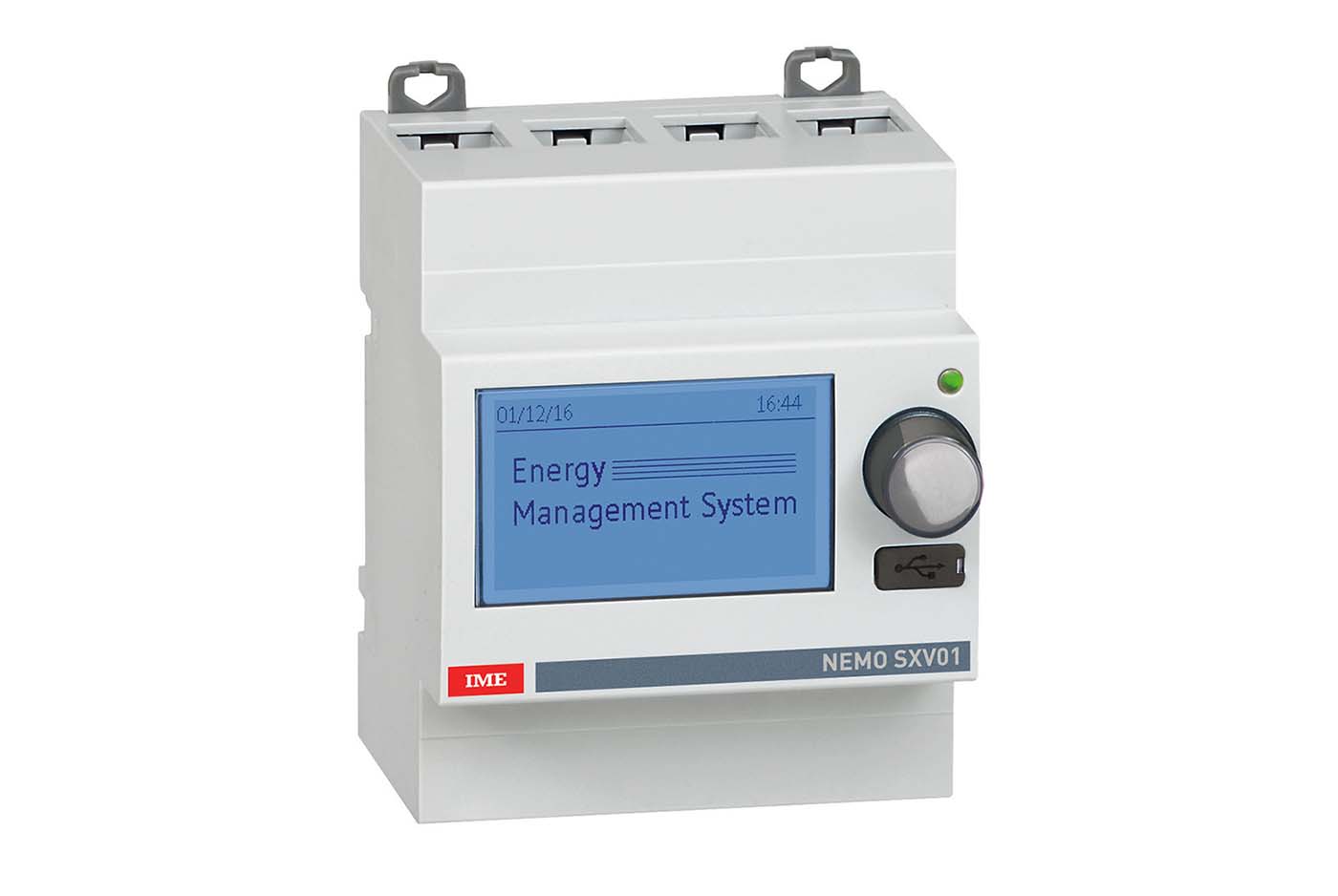

- Centralized visualization of measurements via DIN module

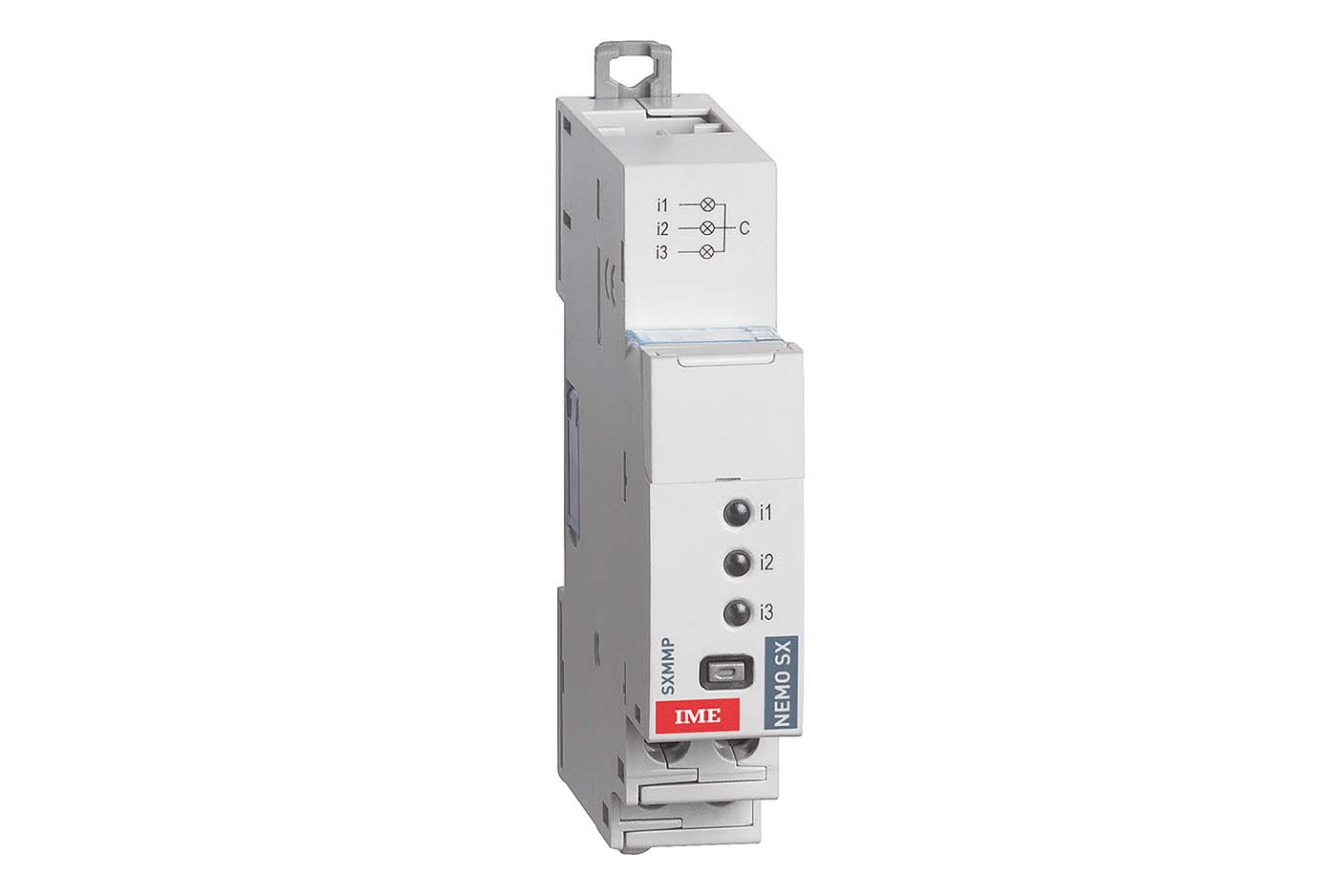

- Acquisition of the voltage for each measurement module in order to be able to compare voltages and currents (V and I) for each measurement point

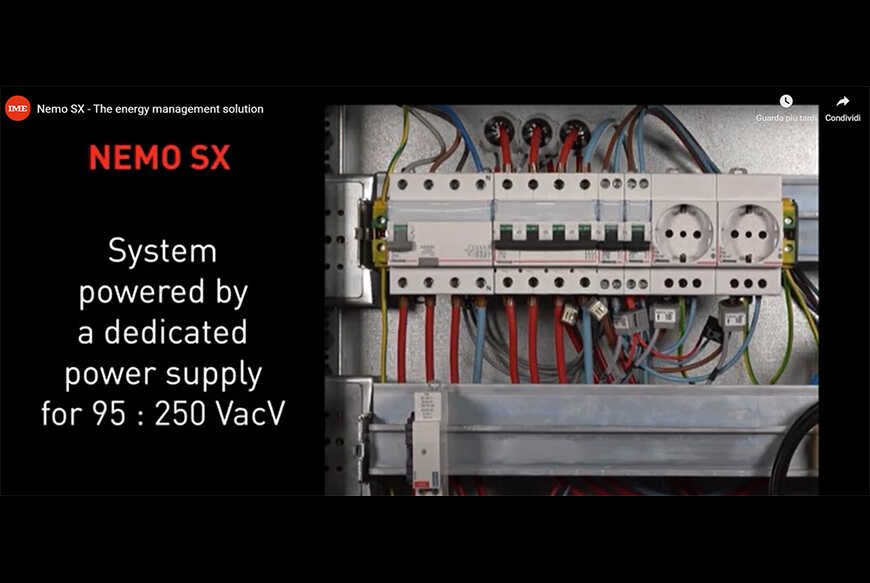

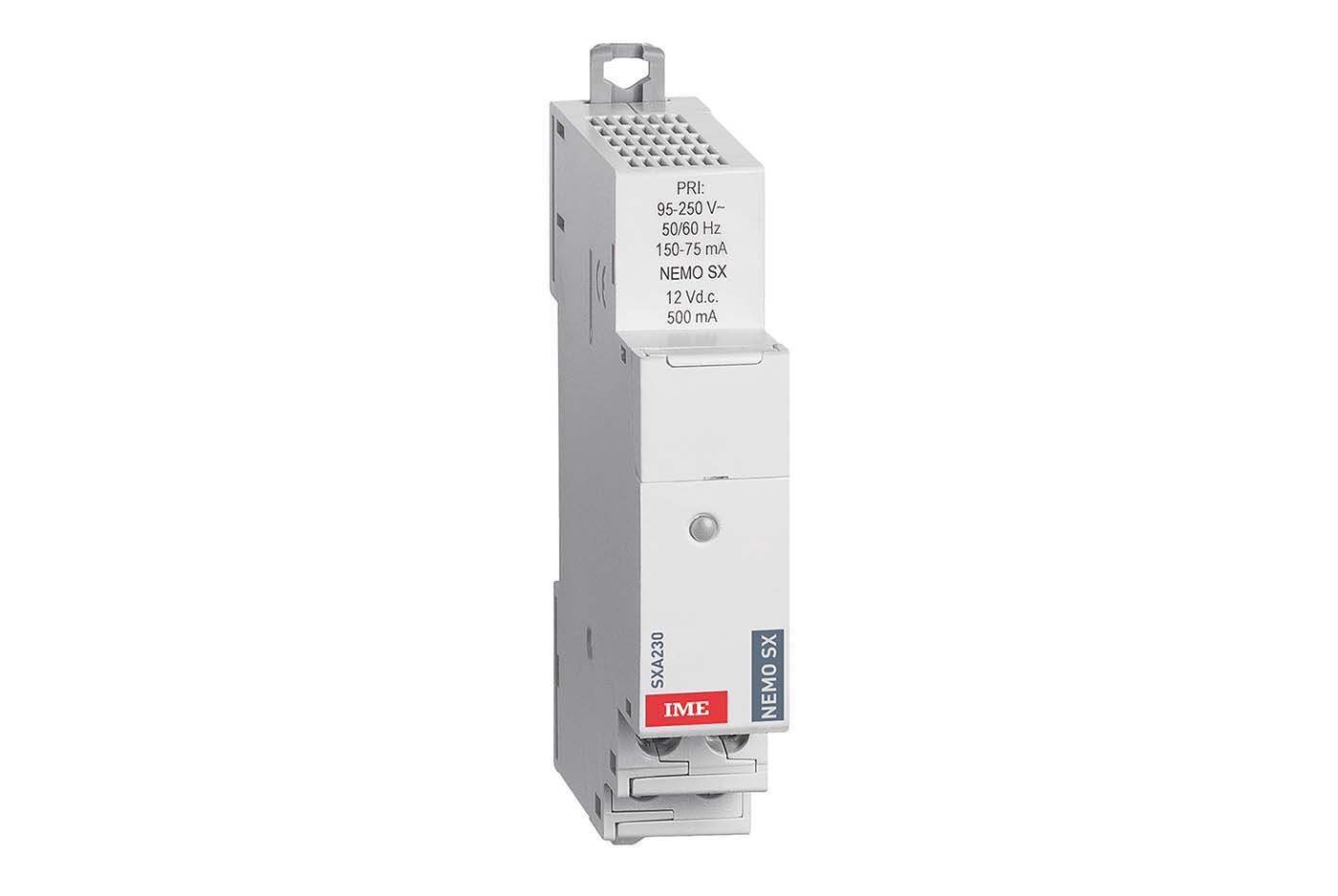

- Auxiliary power supply of the system from a dedicated power supply (networks from 95 to 240Vac)
The NEMO SX system is suitable for measuring switchboards with multiple outgoing connections.

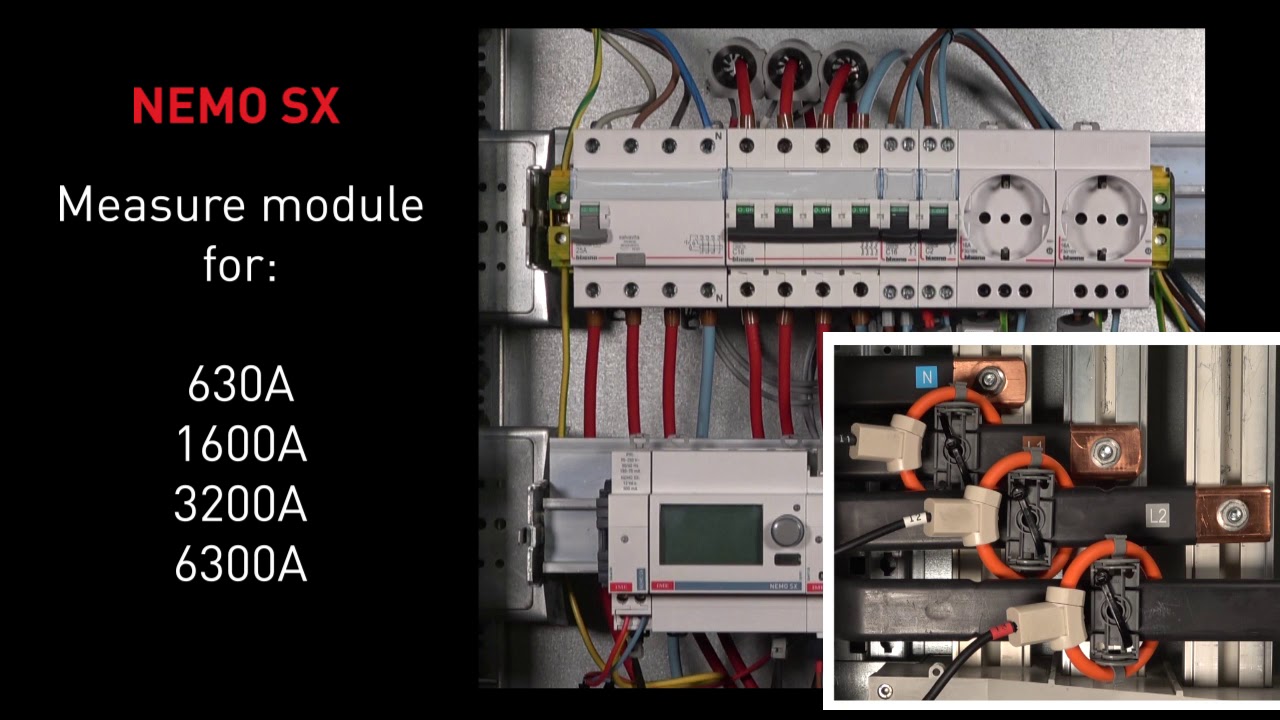

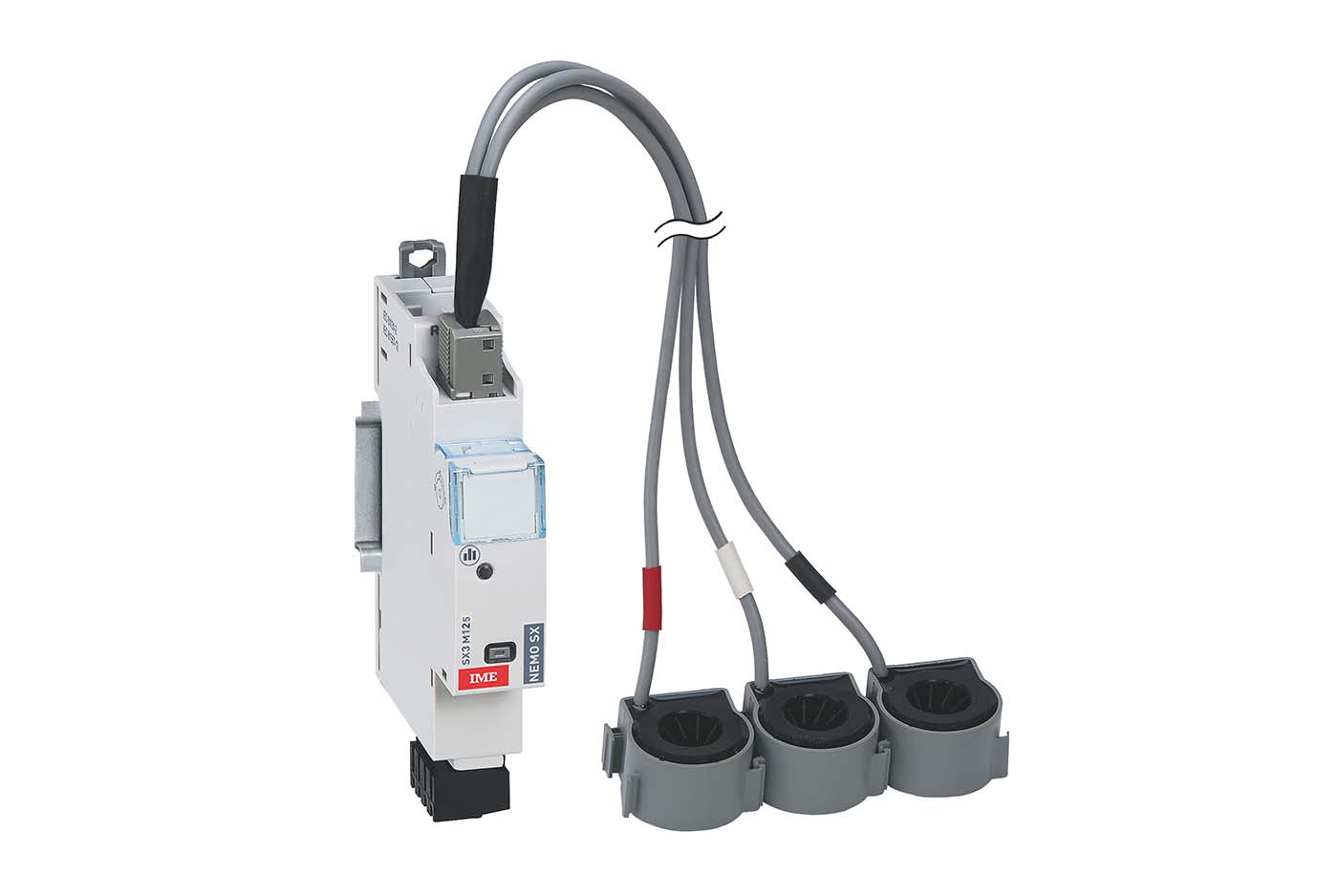

Thanks to the measuring coils, a high degree of flexibility and accuracy is possible.
- Active energy measurement accuracy class: 1 (Ea, IEC / EN 61557-12)
- Active power measurement accuracy class: 1
It can be used for remote management of devices, via webserver using either PC, smartphone or tablet.
