MyHome FLATWALL: switchboard for home automation.
Innovative, highly aesthetic value solution for the centralised and rational installation of all electrical, home automation and traditional services in residential buildings.
MyHome Flatwall is the innovative solution for home automation and electrical systems in residential buildings. Non-invasive and pleasant in appearance, the column allows the centralised and rational installation of all traditional and home automation electrical services.
It is suitable for a variety of uses and can be perfectly integrated thanks to its white finishing panels, which can be painted with common wall paints.
MAIN FEATURES
- Available with a height of 150 cm or 240-270 cm adjustable heights
- Use as a switchboard for the installation of all MyHome system and electrical protection DIN devices.
- Use as a riser column for the distribution of the common service wires between the floors of a building (only possible with Flatwall with variable height 240-270 cm).
- Can be installed in masonry walls (load-bearing and partition walls) and in plasterboard walls.
Uses of MyHOME Flatwall
Variable height 240-270 cm:
- as a switchboard for medium to large systems. It can accommodate a maximum of 288 DIN modules;
- as riser: configuration going through the various floors of the building, for wired distribution of common services.
Height 150cm:
- as switchboard for basic home automation systems. It shares most of the accessories of the 240-270 cm version and can accommodate up to 180 DIN modules

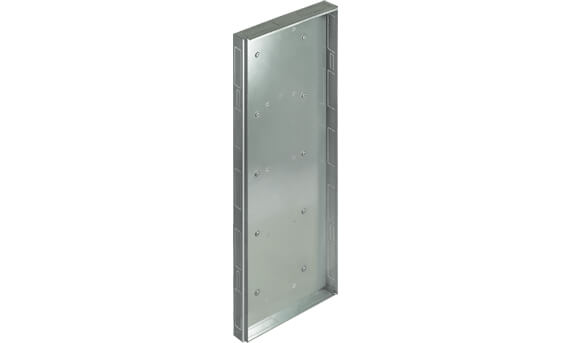

Made of metal, with a height 150 cm or adjustable to two heights: 270cm and 240cm, to be flush mounted into masonry or plasterboard walls.
Available in different sizes for the installation of DIN devices and, using brackets, non-modular devices (modems, routers, etc.). Including cable ducts at the sides for cable routing.
The panels meet both aesthetic and functional requirements; they are available in a white (RAL 9003) finish and can be painted with common wall paints.
