The BUS devices are wired using a two-wire cable (twisted pair), through which information and the 27V d.c. power are distributed.
The installation of the actuator devices follows the rules of traditional wiring, in addition to connection to the BUS they are also connected to the 230V a.c. mains for load control.
MyHOME allows to create home automation systems of medium-large complexity; by integrating the new F422A interface into the system, it will be possible to manage up to 525 channels (*).

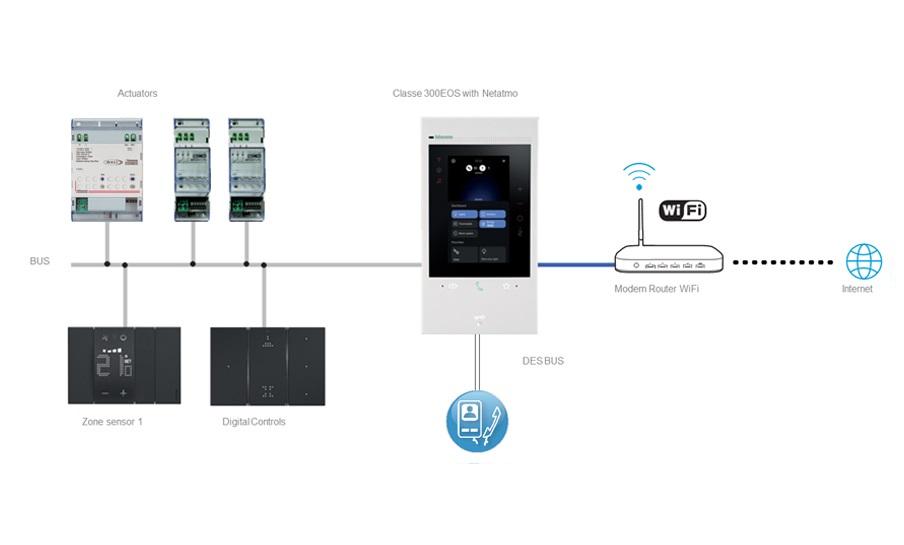

In new systems where MyHOME is integrated with the video door entry system, the server function for connection with the Internet and the App management functions can be performed by the Classe 300EOS with Netatmo video internal unit.
Note (*): Channel means the individual relay or output of the actuator for the management of the load.
For the shutter, the counted channel remains one, despite the use of 2 relays.

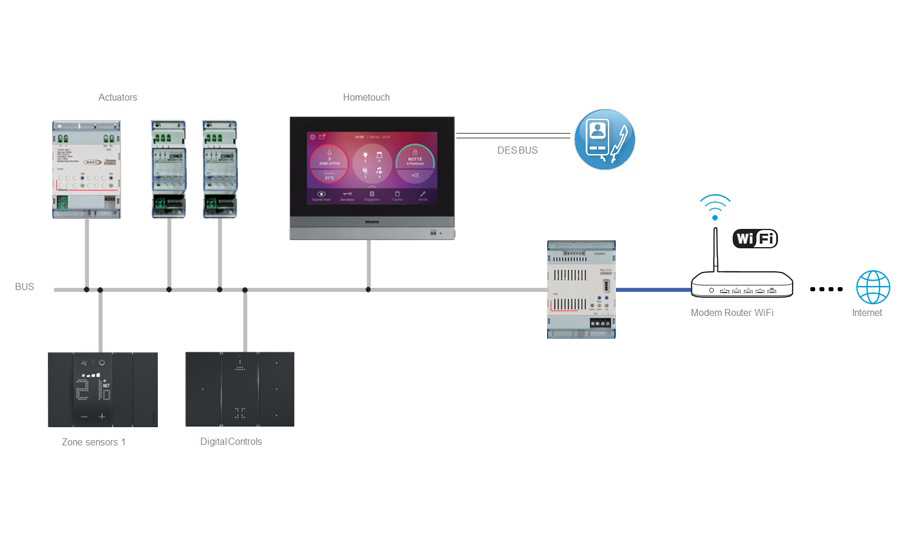

If the system does not have video door entry system functions or does not include Classe 300EOS with Netatmo, the new server DIN item F460 will have to be used as a server. In this case, for the central management of the video door entry system and home automation functions, it will also be possible to install the Hometouch device.
Create the project with the list of rooms and objects. Archive completed projects by associating tags to speed up their search. Use the Copy/Paste function to replicate a project across multiple systems and share it with your colleagues, to manage your work more efficiently.
Connect Home +Project to the system through the local Wi-Fi network generated by the server and start the system configuration process; then associate actuators and commands
Simply download the Home + Control App on their Smartphone for an immediate and smart management of their homes.
Video tutorial
MyHOME Technical Guide
Prepare and design your system with the help of the technical guide. An must for the professional, with all the updated technical information useful for designing, installing, configuring MyHOME devices.
Would you like an estimate for the installation of a Smart electrical system?
It’s simple. Access the Smart Home Configurator in the Tools section of the site. With just a few clicks you can:
- create your home (one, two or three bedroom apartment, attic/home, penthouse/large villa);
- select systems (Motive power and services, lights, shutters, ...);
- customise the functions of each system for each room;
- customise the ranges (Living Now, Livinglight, Axolute,…);
- customise the material list and get a complete estimate.
