Lighting control - KNX bus system

Solutions for the control, management and supervision of lighting in the whole building.

Today KNX is the world standard, open and compliant with the main European and international regulations, for automatic and decentralised management of technological systems in a wide range of situations: commercial buildings, industry, offices, private homes, public establishments, and many more.



Recognised by ISO/IEC 14543-3-x as international standard for the system technique of buildings and homes, KNX satisfies the requirements of the two European standards CENELEC EN50090 and CEN EN 13321-1.


The Bticino/Legrand KNX offer answers the specific needs of the service building thanks to its complete and high-performing solutions which can guarantee its customers an optimum, flexible and open system.



The ideal solution for large systems and with complex management.

MAIN FEATURES

  • Optimum control: the control is enriched with many possibilities: comfort of lighting, room scenarios, combination of various functions ... Discover the KNX offer which combines performance, appearance and comfort for an optimum and complete answer to your customers' needs;
  • Simplified installation: mounted in the false ceiling or in the cabinet, the controllers simplify the wiring and can control all the types of load;
  • Flexible, reliable and consistent configuration: good system operation is guaranteed by the ETS5 software, the only tool which allows all the KNX devices to benefit from a powerful and shared configuration method.
  • The specific KNX configuration remote control can be used to manage the sensor operation parameters and modify them quickly. This allow you to interrogate, display and modify the parameters.

KNX controls available also in the Living Now range

Full touch controls are available in Living Now, so that they fit in perfectly with the other system devices.


It is possible to chose between 2 different types of controls:

  • control with 2 modules and 4 keys
  • control with 3 modules and 6 keys



Covers are available in 3 colours (white, black and sand) with a range of 16 cover plate finishes

07_KONNEX
 Aesthetic and functional integration with wiring devices

Aesthetic and functional integration with wiring devices

The KNX offer includes a series of temperature command and control devices, available in the following wiring devices:

  • Living Now
  • Axolute
  • Livinglight
Multifunction modular controllers
08_KONNEX_1
0 026 78

Multiple application all-in-one controller with 20 outputs, capable of performing several functions.

08_KONNEX_2
0 026 76

Multiple application all-in-one controller with 16 outputs, capable of performing several functions.

08_KONNEX_3
0 026 74

Multiple application all-in-one controller with 12 outputs, capable of performing several functions.

09_KONNEX_1
0 026 72

Multiple application all-in-one controller with 8 outputs, capable of performing several functions.

09_KONNEX_2
0 026 73

Multiple application all-in-one controller with 8 input and 8 outputs, capable of performing several functions.

09_KONNEX_3
0 026 79

Multiple application all-in-one controller with 18 input and 20 outputs, capable of performing several functions.

Dimmer controllers
10_KONNEX_1
0 026 65

KNX/DALI DIMMER modular controller



KNX/DALI 1-channel interface capable of managing a maximum of 64 ballasts split into 16 groups.

Management by means of DALI presence sensors in 8 groups.

10_KONNEX_2
0 026 68

1-10V DIMMER modular controller


KNX 1-10V 10-channel dimmer to manage interfaced lamps via 1-10V reactors.
The device also has 10 contacts, 16A each, to switch light loads.

Gateway and line couplers

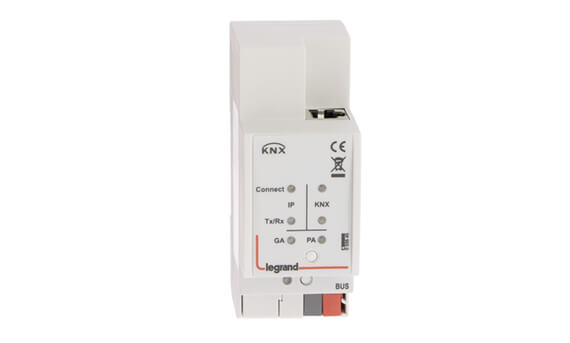

11_KONNEX_1
0 035 45

Gateway


Using the tunneling protocol, the KNX/IP Gateway with Router provides a connection point for ETS for operation and monitoring.

11_KONNEX_2
0 035 46

Line coupler

KNX coupler, to be used for data bidirectional exchange between two KNX lines, to ensure galvanic isolation.

Power supplies
12_KONNEX_1
0 035 06

Power supply


KNX modular power supply with RESET pushbutton and notification LED.
Current supplied 320 mA.

Alimentatore KONNEX
0 035 07

Power supply


KNX modular power supply with RESET pushbutton and notification LED.
Current supplied 640 mA.

13_KONNEX

Configuration gateway

The new and innovative Configuration Gateway is a tool that allows to program and modify the operating parameters of the sensors of the KNX system, Lighting Control and SCS, using a smartphone and the dedicated Legrand Close Up APP.

15_KONNEX_1
Wide range of controls

Indispensable solution for specific applications, KNX controls can manage the lighting (on/off, dimmers, scenarios, motorisations), shutters (up, down, stop), curtains and other devices.

15_KONNEX_2
Sensors suitable for every type of detection

With the many sensors in the catalogue we can satisfy any project; from energy performance to performance of use.

15_KONNEX_3
Controllers and actuators

Controllers and actuators can control many types of load:

  • All types of on/off load (e.g.: lamps, shutters, motors..)
  • Dimmer DALI (64 Ballast max)
  • LED lamps

Some special devices like the multi-application controllers can also measure the power consumed.
